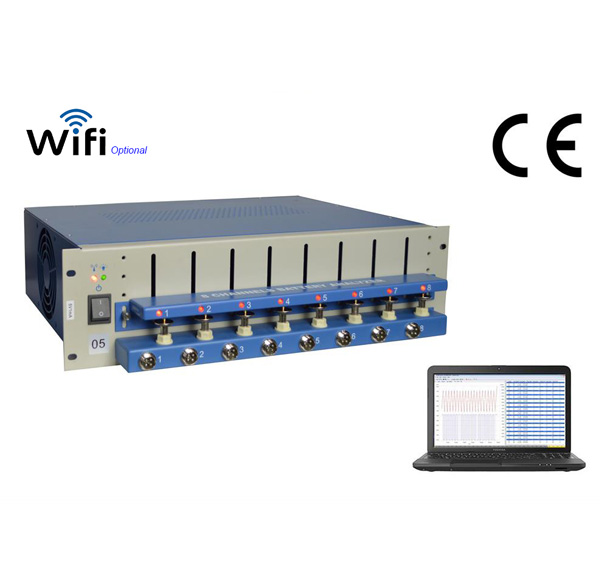

8 Channel Battery & Supercapacitor Analyzer ( 0.5mA - 6A @ 0- 5V ) w/ Laptop & Software - BST8-A6V0

8 Channel Battery & Supercapacitor Analyzer ( 0.5mA - 6A @ 0- 5V ) w/ Laptop & Software - BST8-A6V0

0.0/5 rating (0 votes)

Description

BST8-A6V0 is an eight-channel battery and supercapacitor analyzer to analyze all kinds of batteries and supercapacitors from 0.5 mA to 6 A, up to 5V, and discharging supercapacitor to 0 volts with gold-plated pins for the best connection. Each channel of the analyzer has an independent constant-current and constant-voltage source, which can be programmed and controlled by computer software. This system provides most applications in battery testing fields such as electrode materials research, battery and super-capacitor performance test, small-scale battery formation.. Brand new laptop with MS Window 10 latest version testing software is installed and calibrated for immediate use (Up to 20 sets of analyzers can be simultaneously controlled by one PC).  SPECIFICATIONS:

Electricity requirement

110V AC or 220V AC selectable for universal use

Power Consumption

425W

Current

  • Three ranges of max. current are included and switchable on the device
    • Range 1: 0.5 mA - 0.1 A with the cut-off current of 0.2 mA;
    • Range 2: 0.1 A - 3 A with the cut-off current of 6 mA;
    • Range 3: 3 A - 6A with the cut-off current of 12 mA.
  • Accuracy: ±(0.05% of reading + 0.1% of range)

Voltage

  • Constant charging voltage range: 25 mV  - 5V programmable
  • The lowest discharging voltage:    0 V
  • Accuracy: ±(0.05% of reading + 0.1% of range)

Data register conditions

  • Minimimum time interval: 100ms.
  • Minimum voltage change interval: 10 mV
  • Minimum Current change interval:
    • Range 1: 0.2 mA;
    • Range 2: 6 mA;
    • Range 3: 12 mA

Max. measurement cycles

65535 cycles

Product Dimensions

445mm(L) x 380mm(D) x 135mm(H)

Channels

  • Eight independent programmable channels
  • Each channel can set different working modes and functions independently

Battery Holders

  • Two types of battery holders are included in the BST8-A6V0 Standard package:
    • 8 Gold Plated spring load holders with adjustable height for measuring cylinder or coin cell up to 70mm(H) (pls click a picture below  1-2 to enlarge)
    • 8 alligator clips with cable for universal connecting (for pouch cell, click the picture 3-4 below  )
  •

Programs & Software

  • The testing software  is included to set various working modes for measuring the capacity and lifecycle of all types of rechargeable batteries
  • Working modes Include constant current discharge, constant current charge, constant voltage charge, constant resistance discharge, rest, and etc.
  • With a real-time monitoring interface and integrated graph/data windows, the testing process can be observed more directly and efficiently
  • During the test, the software will provide instructions and warnings for assistance
  • The calibration software can be used to calibrate the analyzer
  • MS Excel 2013 30 days free trial is pre-installed for you to output the Excel data file.(Note: Updated information on 5/21/2015)

Test Reports and Curves for analysis

  • Different types of curves can be created by software base on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)
  • Forms of data are created by the software. User can easily compare the performance of the batteries tested in channels both visually and statistically

Protection and Auto-recover

If the power failure occurs during testing, the system will shut down all operating channels. Once power is recovered, the system will automatically resume those stopped channels and ensure that the test is normally conducted, so that no cases will lose any data.

Laptop Computer
&
WIFI Control

  • Brand new laptop ( 4GB RAM 128GB SSD Hard drive) with MS Window 10 is included and the latest version testing software is installed and calibrated for immediate use.
  • Notice: It is suggested to use an external hard drive to keep an instant backup of the collected data.

Compliance

  • CE Certified
  • MET, TUV, CSA, UL certification are available upon request at extra cost

Warranty

Two Year limited warranty with lifetime support for the battery analyzer. (Note: MTI does not carry a warranty for the Laptops. In case service is needed for the laptops, please contact the laptop manufacturer directly for warranty/no warranty service.)
Operation Manual & Video
Application Notes
  • New buyers must buy the software installed laptop to avoid trouble from installation. If you like to run multiple battery analyzers on one Laptop, you can just buy multiple analyzers with one laptop which are offered at a discounted price.
  • Warning: Please choose NEVER for Screen protection and Sleep in Power& Sleep setting of your computer, or it may lose connection from the battery analyzer.
  • The customer can easily combine up to 20 battery analyzers (0.005-1mA, 0.1-10mA, 6mA-3000mA) by using a normal Ethernet cable connector via one computer.
  • You may order MTI's movable rack to organize the battery analyzers (click the first picture below for more information)

Net Weight 11.5 kg (26 lbs)
Shipping Weight 18 kg (40 lbs)
Shipping Dimensions 610mm(H) x 510mm(W) x 356mm(H) (24" x 20" x 14")
