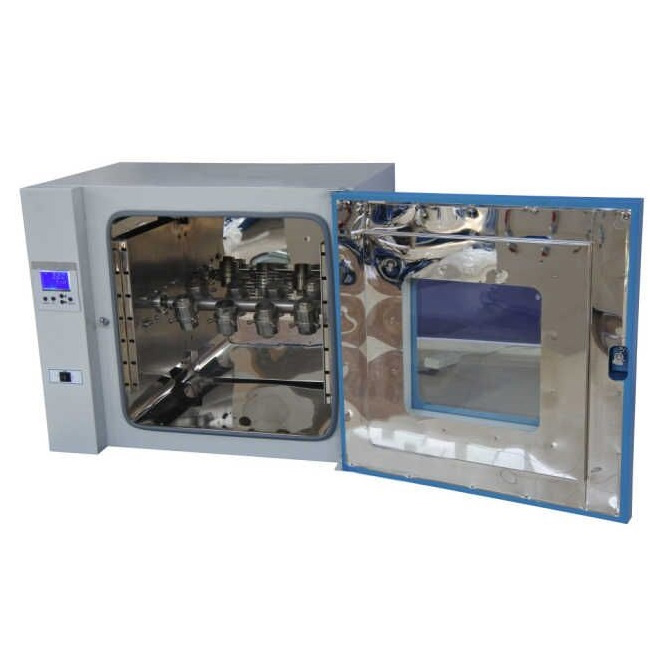

8 Vessel Rotary Reactor Up to 250°C ( Mixing & Ball Mill & Hydrothermal up to 10 MPa) - EQ-BGP-R8-D

0.0/5 rating (0 votes)


BGP-R8-D is a multi-vessel rotary mixer in the oven up to 250°C and 10 MPa pressure for high-temperature mixing, ball milling, and homogeneous hydrothermal processing with various vessels or jars from 50ml to 200ml.
(Updated from BGP-R8 with DC motor hidden inside the case to save space since June 20, 2018)
  • Total Power:  2000 W
  • AC 208- 240V , single phase, 50/60 Hz
  • ~ 36“ L power cable is included, but no plug.   You may order a 220V / 15A plug to fit a 208 - 240V AC power
  • If you would like to use at 110V AC,   you have to order a 3000W (  110V- 220V) transformer ( click Pic below right), then directly connect the transformer to a wall plug ( 20A rating, USA plug)
Heating Oven
  • Forced air heating with stainless steel lining
  • Standard chamber size: 520 x 450 x 550 mm
  • Max. Working Temperature: 250 °C
  • Temperature Sensor: PT100
  • Digital PID temperature control with +/- 1°C accuracy ( single-point temperature control )
  • Anti-explosive film on the window
  • 1" vent port is included
 Rotation Mechanism
  • High torque  24VDC motor is located inside the case.
  • Speed range:  0 - 300 RPM adjustable for standard eight 50ml vessels (Max. Rotation Speed will be varied depending on the size of the vessel)
  • The oven comes with 8 standard vessel clamps, customers may request for clamps in a different quantity or for different vessel clamping size.

  • The standard vessel is made of SS 304 with PTFE lining (8 vessels with 50 mL capacity  are included ) (pic.1 & 2)
  • SS316 vessel is available upon request at extra cost
  • Max. working temperature:  250°C <1h, 200°C for 8-12h
  • Max. Pressure: 10 MPa
  • Weight: approx. 2 kg/each (empty)
  • Vessel Drawing
  • Vessel capacity is optional at
    • 100ml  (6 vessels max in the oven) (pic.3)
    • Customized size vessel may be available upon request
  • Please click the pic.2 below to order extra vessels
  •  pic.1    pic.2   pic.3
Control panel
  • Digital control panel for temperature, speed and time setting
  • You may choose the various grinding ball for high-temperature ball milling ( click picture below to order )
Dimension & Weight

  • 835mm L*570mm W*695mm H
  • 120 kg weight
Shipping Weight 470 lbs
Shipping Dimensions 48" x 40" x 54"
Operation Manual & Video
  •  CE certificated
  •  NRTL certification is available at an extra cost
  • The high-pressure equipment must be put in an explosive-proof box or room to avoid an accident
  • Operators must wear safety goggles all the time.
  • The customized mixing jar adaptor is available upon request at the extra cost
