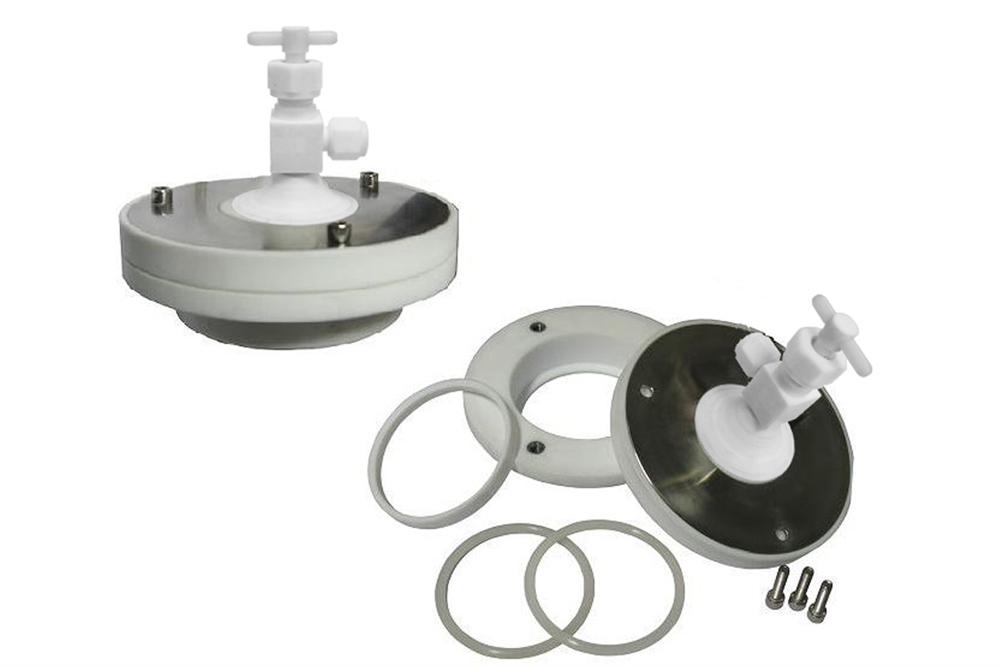

80 mm PTFE Sealing Flange with Valves - EQ-FG-80PTFE
Description
This is a pair of sealing flanges made of polyfluortetraethylene (PTFE) for 80 mm diameter processing tube. It is ideal for working with CVD gases that are corrosive to stainless steel.
- Made of polyfluortetraethylene (PTFE) with double high-temperature silicon O-rings on flange.
- Stainless steel needle valve with 1/4" pipe adaptor.
- The assembly kit will seal one end of 80-82 mm diameter ceramic and quartz tube.
- Vacuum pressure can reach 10-5 torr with suitable pump.
- Max. working temperature: 250ºC
- For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
- Note:
- A thermal block must be placed in the end of furnace to reduce heat radiation, otherwise the PTFE flange may melt off if furnace temperature is higher than 500ºC.
