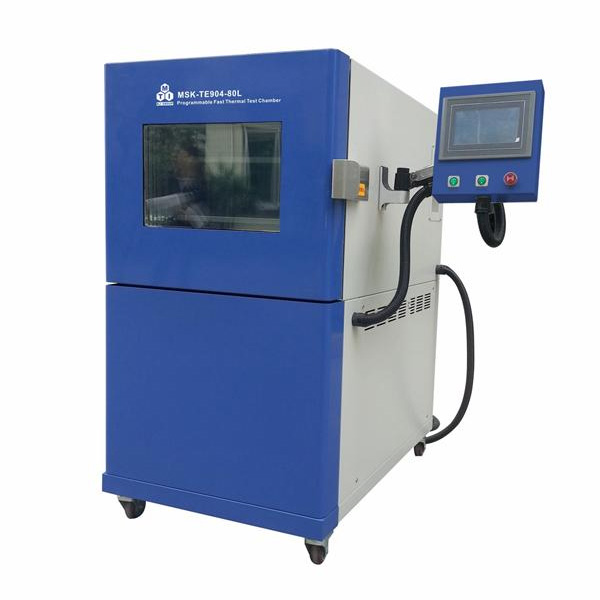

80L Programmable Fast Thermal Test Chamber (-75C to +150C, UN38.3.4.2) - MSK-TE906-80L

0.0/5 rating (0 votes)

Description

MSK-TE906-80L is an 80-liter Programmable Thermal Test Chamber for the thermal test of Rechargeable Battery & Battery Pack according to UN38.3 (38.3.4.2) and other thermal tests from -75ºC to  +150ºC at faster heating and cooling rate.

SPECIFICATIONS
Test Chamber Features
  • Made of SS304 stainless steel with thermal insulation of foam polyurethane and fiberglass.
  • Inside dimensions: 400 W x 500 H x 400 D (mm)
  • Outside dimensions: 700 W x 1310 H x 1070 D (mm)
  • Window: 220 x 280 x 40 (mm), 4 layers vacuum sealed
  • Capacity: 80 Liters
Control Panel
  • 6" touch-screen control panel to set up the program, and display temperature profile
  • 1200 segments programmable, and each program can be repeated up to 999 times
  • RS232 port and software are included to allow PC remote operation
Cooling & Heating System
  • High-quality refrigeration  compressor made in France (1.5HP)
  • Refrigerant R404A, environmental friendly
  • Stainless heater tube
  • Built-in beep alarm for over-heated and over-current
  • Working Temperature: Programmable from -75ºC  to +150ºC
  • Temperature accuracy: +/- 1ºC
  • Max. Heating rate: 5ºC/min
  • Max. Cooling rate: 5ºC/min
Power
  • Voltage: 208 - 240VAC (three-phase, 50 or 60 Hz selectable)
  • Current: 21 A Max.
  • Power: 8 KW Max.
Machine Dimensions
& Weight
  • 980 x 1590 x 910 mm
  • 230kg
Certificate
  • The machine is Ready to pass UL or CSA certification at customer cost
Warranty
One year limited manufacturer's warranty with lifetime support; extended warranty available upon request at an additional cost
Compliance
  • CE
  • NRTL or CSA certification is available upon request at an extra cost
Demo Video
Optionals
  • Other standard chamber size is avaible at:
    • 150 Liters (Chamber 500 x 600 x 500 mm, Overall 1080 x 1690 x 1010 mm)
    • 225 Liters (Chamber 500 x 750 x 600 mm, Overall 1170 x 1840 x 1030 mm)
    • 408 Liters (Chamber 600 x 850 x 800 mm, Overall1170 x 1950 x 1320 mm)
    • 800 Liters (Chamber 1000 x 1000 x 800 mm, Overall 1570 x 2070 x 1320 mm)
Shipping Weight & Dimensions
  • 980 lbs
  • 56" x 45"x 64"
Application Notes
