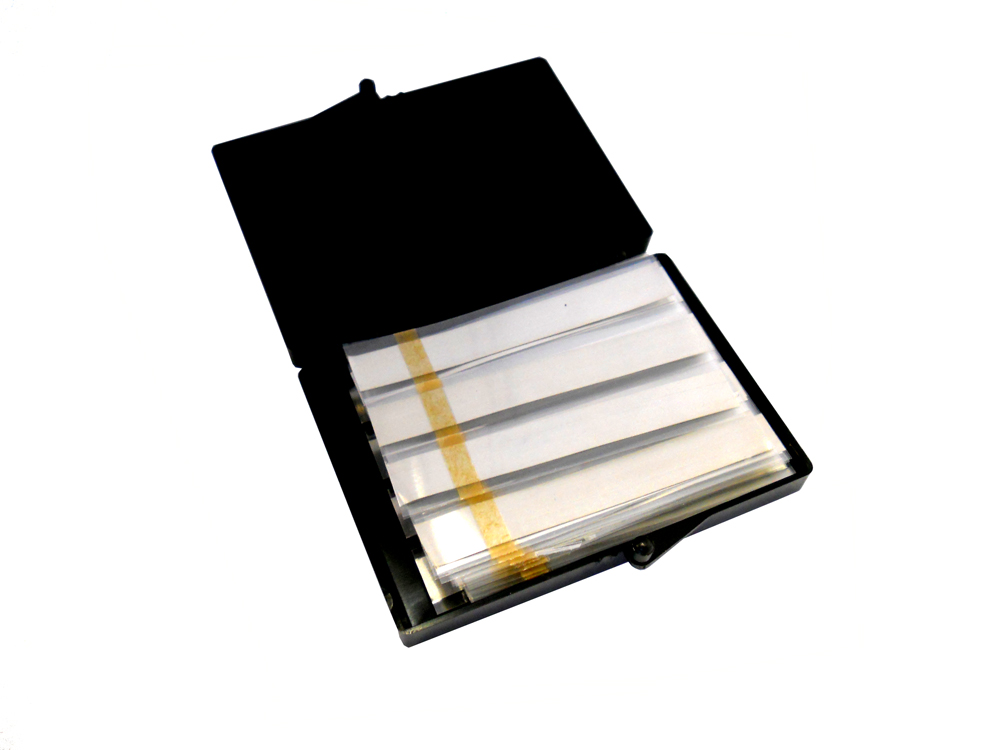

8mm Width Aluminum Tab as Positive Terminal for Pouch Cell, 50pcs/Box - EQ-PLiB-ATC8

0.0/5 rating (0 votes)

Description

8mm Aluminum Tab as Positive Terminal for Polymer Li-ion Battery    50pcs/Box

  • Material: Aluminum 99.99%
  • Length: 61mm
  • Width: 8mm
  • Thickness: 0.09mm
  • Application: Connect to cathode current collector as polymer battery positive terminal
  • Net Weight: 120mg/pcs
  • Gross Wight: 18g (Tabs with Box)
  • Max. Loading Current: 10A
  • Suggested Sealing Method (parameter below may vary from case to case):
  • Soft type heat-sealing blade (Blade with rubber, see MSK-140)
  • 180-200°C for upper blade
  • 160-180°C for lower blade
  • 40PSI (0.3Mpa)
  • 3 seconds heating time
  • Adhesive Polymer Tape is attached on the tab for immediate hot sealing
  • MSDS



Click the picture below to see
polymer battery with tab:

Click below video to  see how to weld the tab onto the current collector of the electrode:

Click the link here to see MSK-800
Click the video below to see how to heat sealing the tab onto pouch cell case after the welding:

Click the link here to see MSK-140
