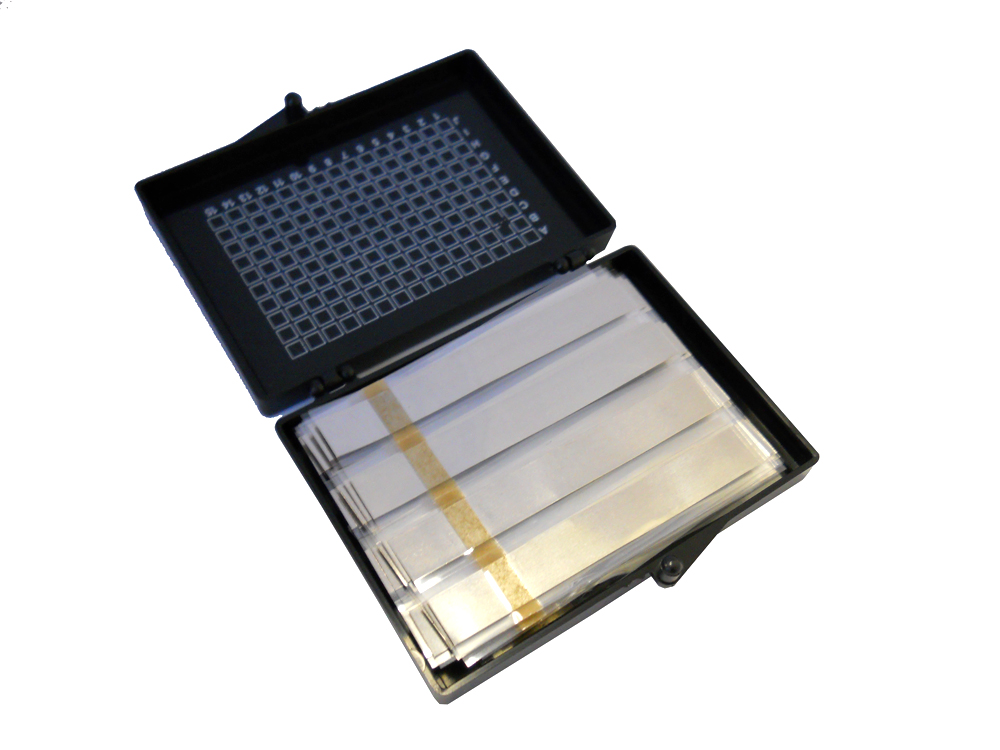

8mm Width Nickel Tab with Adhesive Polymer Tap as Negative Terminal for Pouch Cell, 50pcs/Box - EQ-PLiB-NTA8

0.0/5 rating (0 votes)


8mm Nickel Tab with hot melt tape as Negative Terminal for Polymer Li-ion Battery   -- 50pcs/Box

  • Material: Nickel 99.99%
  • Length: 60mm
  • Width: 8mm
  • Thickness: 0.09mm
  • Package:  50 pcs per box
  • Net Weight: 320mg/pcs
  • Gross Weight: 20g (Tabs with Box)
  • Max. Loading Current: 10A
  • Suggested Sealing Method (parameter below may vary from case to case):
  • Soft type heat-sealing blade (Blade with rubber, see MSK-140)
  • 180-200C for upper blade
  • 160-180C for lower blade
  • 40PSI (0.3Mpa)
  • 3 seconds heating time

Adhesive Polymer Tape is attached on the tab for immediate hot sealing


Click the picture below to see
polymer battery with tab:

Click below video to see how to weld the tab onto the current collector of the electrode:

Click the link here to see MSK-800
Click the video below to see how to heat seal the tab onto the pouch cell case after the welding:
