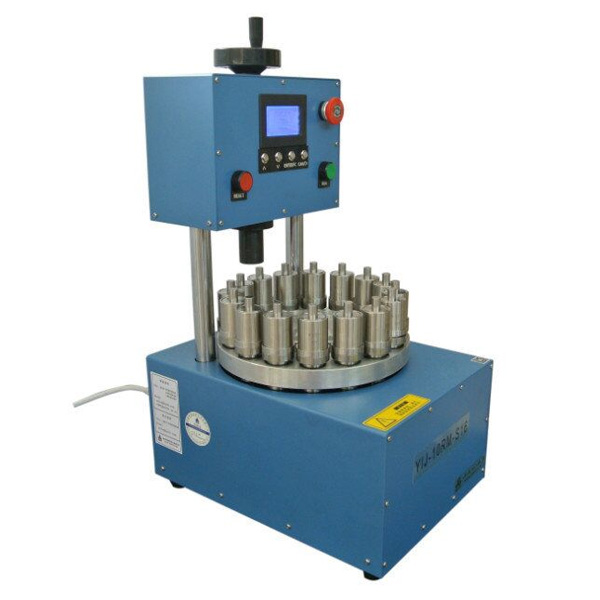

8T Rotary Electric Press wi/ 16-position for High Throughput Pellet Preparation - YLJ-10RM-S16
0.0/5 rating (0 votes)
Description
YLJ-PE is a compact electric hydraulic pump with programmable and automatic pressure control up to 70 Mpa. It is designed to replace MTI manual hydraulic pump into electric at affordable press
Specifications:
Power
208-240VAC, 50/60Hz (110V version is available via 500W transformer)
180 W AC motor.
Controller
Built-in digital pressure controller, which is 30 segments programmable to set up multi-step pressurization and dwell time. (Pressure settings have to be monotonically increasing. Multi-step pressure relief is not allowed.)
Pumping speed is adjustable to increase the control accuracy according to different pressure ranges.
RS485 port is built-in on the control panel.
PC control software based on Labview is available upon request at the extra cost. (Please inform us in advance if you need PC operation, and suggest you buy a laptop from us for pre-test)
Pressure
Max. Pressure: 70 Mpa
Accuracy: ±0.5MPa in high pumping speed ±0.1 MPa in low pumping speed
Hydraulic oil
AW32, 1.5 L
Operation Temperature
10 - 40°C
High-Pressure Pipe
One standard high-pressure flexible pipe ( 1 meter long ) with KF40 feedthrough is included for connecting the pump to the press that is inside the glovebox. Customized length is available upon request.
End connectors are ZG3/8. If other types (like JIC) of the connector are needed, please contact us to specify the requirement.
Optional feedthrough for working in the glove box
KF40 feedthrough is optional which allows the machine to work inside the glove box.
Overall Dimension
Net Weight
20 kg
Compliance
CE Certified
NRTL certification is available upon request
Warranty
The pressing machine was quality inspected in the USA, lifetime support is provided
One-year limited standard warranty (Extended warranty is available up to 5 years at extra cost).
Operation Video and Instructions
Application
Change manual press into an electric press, optional Laptop operation
