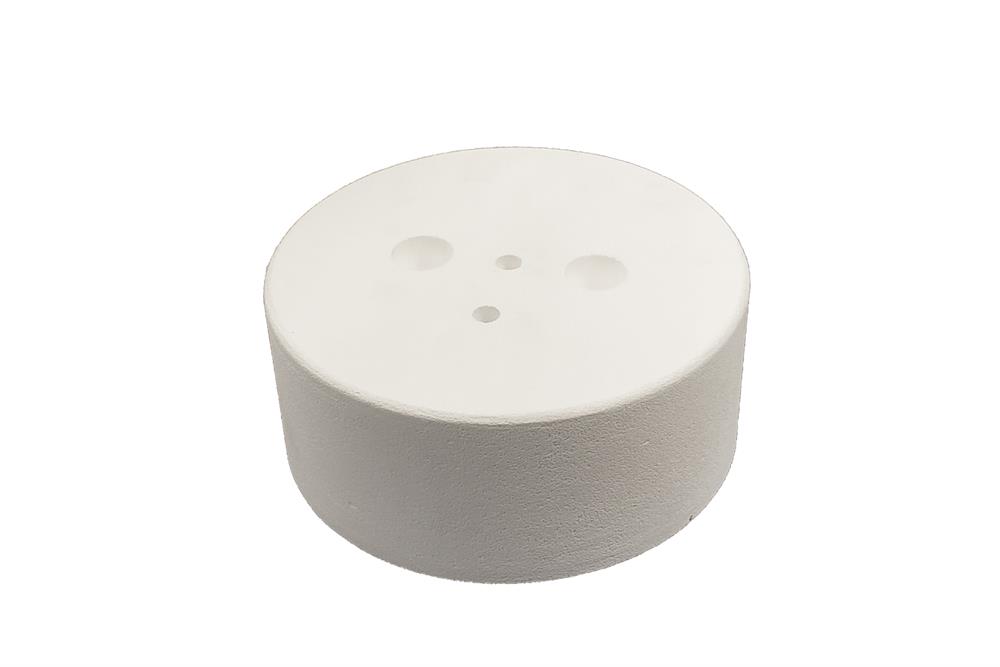

Alumina Foam Block: 188 mm Diameter for VBF-1200X-H8 - FTB188

MTI corporation provides the high quality Alumina (Al₂O₃) foam block with hardening alumina coating for high temperature tubing furnaces in universities, companies and national labs. It comes with the specifications as the following:

• Max. working temperature:  < 1700ºC
• Diameter:  188 mm (7.40") ± 2mm (0.08")
• Length:     80 mm (3.14") ± 2mm (0.08")
• Feedthrough Diameter: 10 mm (0.39")
• The block must be put in the place between the sample and flange.
• Fit MTI's VBF-1200X-H8 Furnace.

Application Note:

• To prevent the dust-falling issues and ensure a cleaning process, it is suggested to apply a thin layer of alumina adhesive material on the surface of the foam block. Please click underline to order.
• For direct delivery of precursor gasses over the heating zone, the customer may drill a hole in the alumina block for sticking a 1/4" O.D. quartz (<1200ºC) or alumina (<1700ºC) tube to deliver gas into the furnace tube center. Porous alumina block is very soft and it can be hand-drilled through easily.
• Click to Watch the video “How to insert and remove foam block for MTI furnaces”.
• Click to Watch the video "How to modify the thermal blocks".
