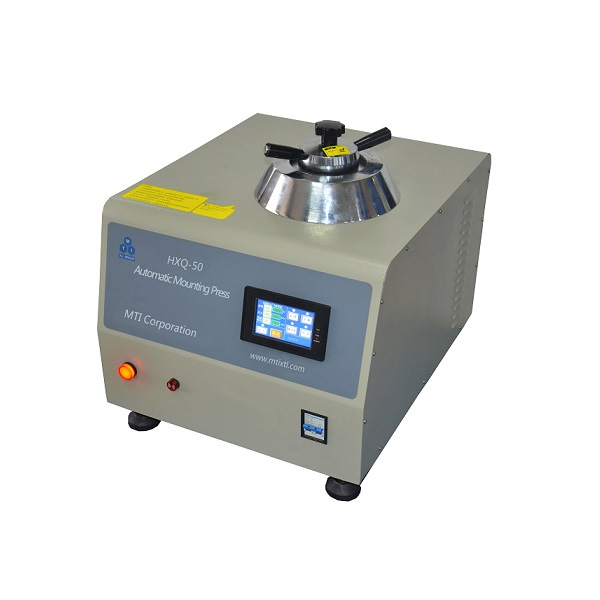

Automatic Mounting Press upto 200C and 2.3 T for SEM & Metallographic Samples - EQ-HXQ-50

0.0/5 rating (0 votes)

Description

HXQ-50 is an automatic mounting press designed to encapsulate samples into round discs up to 200ºC and 2 metric tons for 50mm for SEM or metallographic samples. 4 sets of mounting dies are included with 25 mm, 30 mm, 40 mm and 50 mm. The touchscreen panel makes operation at ease.

SPECIFICATIONS:

Power
  • 220VAC 50Hz or 60Hz (Please specify frequency upon purchasing)
  • For AC 110V power supply please order a 1500W voltage transformer
  • 1200W (10A air breaker required)
Pressing Die
  • Four sets of mounting dies are included with an ID of 25, 30, 40, and 50 mm, which can make two samples at the same time.
  • Each Die Set include:
    • Die Sleeve: OD 60 mm, Height ~135 mm
    • Upper Pressing Rod: Height ~26 mm
    • Lower Pressing Rod: Height ~26 mm
    • Separating Plate: Height: 8 mm

Control Panel

  • 5" Touch Screen Digital control for setting parameters:
    • Temperature:                  100 - 200oC
    • Heating and dwell time:   1 - 999 minute
    • Loading:                           200 -  2306 kg  ( via hydraulic cylindrical )
    • Pressure:  depended on mounting die diameter
      • Max. 470  Bar for 25 mm die
      • Max:  326 Bar for 30 mm die
      • Max.  183 bar for 40 mm  die
      • Max.  118 Bar  for 50 mm die

Machine Dimension

Compliance

  • CE Markered
  • NRTL certification is available upon request at extra cost

Machine Net weight

200 Lb.

Shipping Weight & Dimensions

  • 250 lbs
  • 40" x 30" x 28"

Optional

Please order Compression Mounting Powder (5 Lb) optional color of Black, Red, Green - EQ-HM-Powder5L at the related product below

Operation Instructions

Warranty  One-year limited warranty with lifetime support
