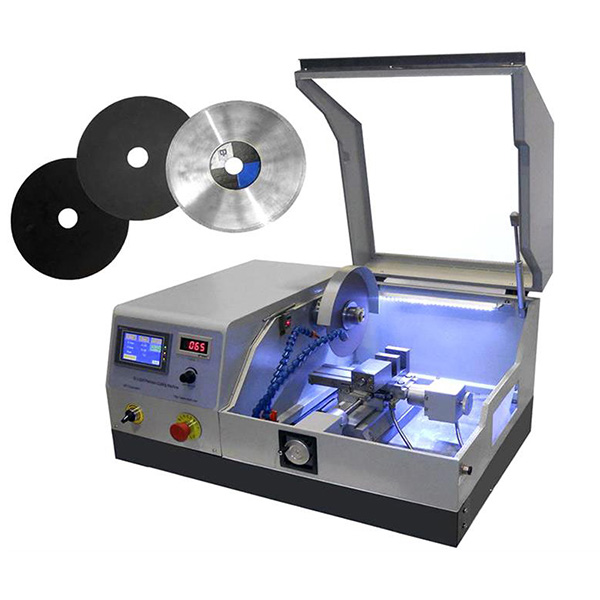

Automatic Section Saw ( 8") with complete accessories SYJ-200



SYJ-200 is an automatic diamond saw for precisely cutting all types of materials. The saw is equipped with an 8" diameter diamond blade and touch-push panel to achieve automatic control. It is the perfect cutting tool for metallurgical, ceramic and materials research laboratories.

SPECIFICATIONS:

Voltage and Power	208V-240VAC, 600W, 50/60Hz Please order a 1500W transformer 110V-220V separately to use the saw at 110VAC.
Motor & Spindle	1 HP high torque DC motor 1" Dia spindle and 2" flange for 6 - 8" Dia diamond blades Variable blade speed: 300-3500 RPM with screen touch control panel and digital display
Sample Stage & Controller	The quick clamp is included makes the sample mount easy and fast. (click picture below-left) Automatic/manual control X and Y, co-axial motion via touch screen digital panel (click picture below right) Programmable Y and X-axis advancement via LCD panel to achieve automatic cutting with 0.01 mm precision The X-axis is for cut feeding which has a max travel distance of 80 mm and adjustable speed from 1.0 mm/ minute to 20 mm/minute Max. cutting depth (or sample height): 65mm The Y-axis is for controlling the thickness of the slices, which can be programmed up to 100 mm distance Max. Opening of the Vise: 54mm
Cutting Blade	Three 8" cutting blades are included and the complete accessory set is included for immediate use One 8" Dia x 0.025" T x 1" arbor sintered diamond blade for cutting ceramic sample One 8" Dia x 0.04" T x1.26" arbor Alumina Blade for cutting ferrous metal and steel One 8" Dia x 0.04" T x1.26" arbor SiC Blade for cutting non-ferrous metal such as Ti, Ni, and Ta SiC Blade
Water Cooling	The optional EQ-ECO-430 Coolant Circulating Tank is NOT included in the standard package, please click the link to order if needed Adjustable nozzles are installed for re-circulating coolant  Protective splash cover with elect cooling during tonic safety interlock installed
Dimensions	Overall dimensions: 734mm x540mm x475mm.
Shipping Dimensions	48" x 40" x 45"
Shipping Weight	365 lbs
Warranty & Compliance	Two (2) Years Limited Warranty with lifetime support (not including the rusty part due to improper storage)
Certification	CE certified. With additional certification fees, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per the customer's request.
Application Note	Must use anti-corrosion coolant during cutting to avoid rusting lead screw. LubeCool-150 can be used as a coolant, and order an optional coolant circulation system at the related product below, which will make the diamond blade cut more efficiently and prevent corrosion. W10-30 motor oil can be also used as a coolant, which is available at any auto store.   Please clean the machine after the completion of each use, especially the lead screw,be sure to clean it with W40 lubricant after each use. Make sure the X and the Y axes can be moved freely without blocking and rusting. Applications on various materials
Warning	It is required to use proper cutting fluid with the saw to prevent corrosion of the machine components. We strongly recommend using the oil-based coolant or lube cool lubricant with the water. Do not use tap water directly, otherwise, the rusting component is not part of the warranty. Never cut any materials without the use of proper cutting fluid. Otherwise, serious damages can be done to the spooler driving mechanism.  For cutting sticky materials, such as non-ferrous alloy, epoxy, and plastic, the diamond blade must be sharpened frequently. We suggest cutting the sample along with the included dressing stone (Glue sample and the dressing stone side by side and cut them together, this process will help keep the blade sharp enough for efficient cutting.)
