Bench-top V-Shape Ball Mill w/ Optional SS Tank 50, 250 , 2500ml (Ar Gas Compatible) - MSK-SFM-11-LD

0.0/5 rating (0 votes)

Description

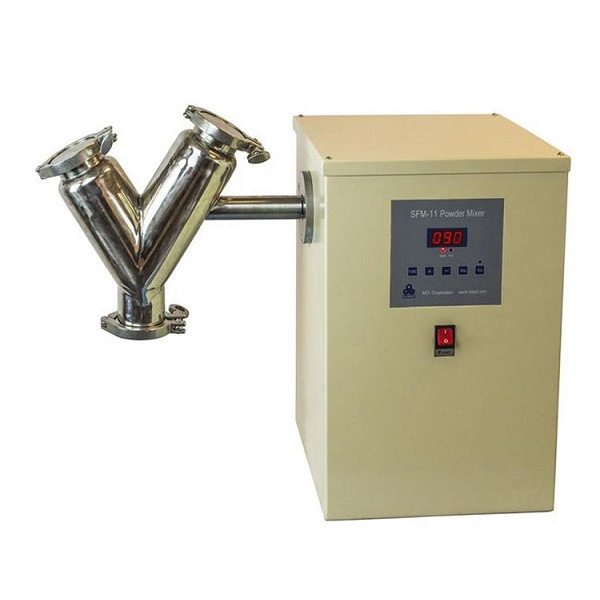

MSK-SFM-11-LD features a special V-shaped mixing tank designed for grinding and mixing dry powders in short periods of time. A digital control panel enables the rotary speed and time duration of the mixing session to be programmed easily. The V-shaped mixing tank provides the ability to separate and rotate the granules in two SS tanks. The granules are transferred from one tank to another for dispersion and get combined at where the tanks join in a continuous fashion. This type of mixing is ideal for dry mixing of materials that require good fluidity or are fragile or fine in nature. The mixer can be used inside a glove box under Ar gas because of 24VD Motor Driven.

SPECIFICATIONS

Features
  • V-shaped mixing tank for separating and combining powder granules (made of SS 304)
  • On-axis rotational mixing
  • Stainless steel tank can be opened on all ends for easy feeding, discharging and cleaning
  • Digital display and simple control interface provides easy programming of mixing operations
  • 110- 240V AC to 24V DC power adapter is included for universal using
  • The mixer can be used inside glovebox under Ar or N2 gas
  •
Input Voltage
  • AC 110 - 240V, 50/60Hz input
  • Current: 3A Max.
  • Power: 25 W
  • The power adaptor to 24VDC  is UL, TUV, CSA and CE approval for worldwide use
Timer Setting Range 1~900 min
Rotary Speed  20~90 rpm
Dimensions and Capacity
  • Variable sized containers are available in the options bar, or click on the links below to order the containers separately:
  • Click the pictures below for the dimensions
  • The material feeding port is with sanitary quick clamps
 50ml          250ml              2.5L
Dimension             310mm L x 352mm D x 485mm H
Optional grinding balls
Please click the picture below to choose a grinding ball made of stainless steel, alumina YSZ and Agate
  • For grinding: please choose a larger ball
  • For milling: please choose a small and larger ball combination
Overall Dimensions 550 x 270 x 550 mm
Weight 45 Kg
Compliance
  • CE, TUV, UL, CSA certified in power supply
  • The machine is safe 24VDC input, which can be used without any safety certification
Warranty
  • Two years limited warranty in Parts with lifetime support
  • Rusting and damage due to improper storage conditions or lack of maintenance is not covered by warranty
Application Notes
  • Please consider our SYU-3 Ultrasonic Filtration System for filtering the product
  • The mixer can be modified  into a Cryogenic mixer with a Liquid N2 tank and automatic temperature control system at an extra cost (click the pic below right 2 to see sketch)
  • High throughput V type mixer is in R&D
  •
