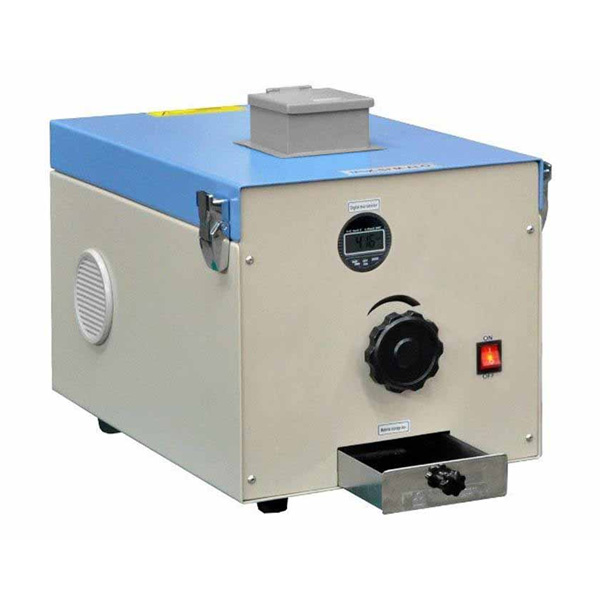

Compact Ceramic Jaw Crusher / Mill with Digital Size Control - MSK-SFM-ALO

0.0/5 rating (0 votes)


MSK-SFM-ALO is a compact electric jaw crusher with an adjustable digital crushing size controller.  Two jaw plates are made of high purity alumina to avoid metallic contamination while crushing materials. It is useful to break up sintered blocks prior to ball milling and saves the researcher labor and time. SPECIFICATIONS

Working Voltage
  • 208 - 240VAC 50/ 60 Hz, 500W
  • (110 AC version will be included 1000W transformer)
Crushing Speed
400 times per minute
Jaw Plates
  • Two high purity alumina plates
  • Upgrade option: high purity manganese steel plate
  • Easy to clean. (The sample inlet and outlet are made of stainless steel which can be cleaned with a brush.)
  • 90mm x 25mm loading port" id="mt-111941323550" class="MagicThumb" style="cursor: url("/graphics/zoomin.cur"), pointer; outline: 0px !important; font: 9pt Tahoma, Geneva, sans-serif; color: rgb(0, 51, 204); text-decoration: none;">
Crushing Size

  • Input:
    • Material Hardness must be < Mohs 8
    • Sample size: 5 - 20 mm diameter or thickness
    • ~ 200 g of input materials can be added at once
  • Output:
    • Output size : 0.1 mm -  3 mm (adjustable via a digital micrometer).
    • Crushing quantity:  ~ 200 g is accepted by underneath drawer each time.
    • Using a slide plate instead of the drawer, continuous output of samples can be achieved with continuous feeding of input materials. ( Sliding plate is optional at $200 extra )
    • Output grain size depends on the material properties (Hardness, elasticity, etc.)
Net Weight 150 lbs
Dimensions L325mm×W500mm×H310mm
Shipping Weight 262 lbs
Shipping Dimensions 39”L x 35”W x 42”H
Compliance CE certified
Warranty One years limited warranty with lifetime technical support
Instruction Manual & Demo
Application Note
  • Please may order  Compact Ultrasonic Sieving System to filter particle after crushing
  • For fine grinding, please crush bulk sample before grinding. Please consider MTI Ball Mill  ( wet milling) and jet mill ( dry milling) ( click pic below right )
