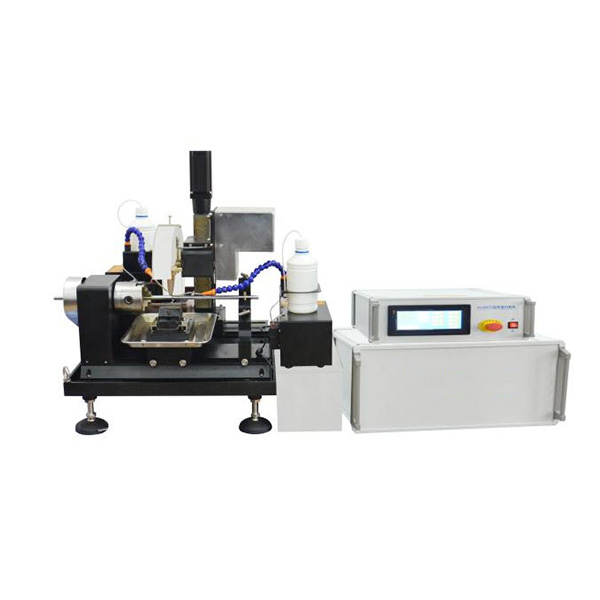

Compact CNC Cylindrical Grinding and Grooving Machine - SYJ-400TZ

0.0/5 rating (0 votes)


SYJ-400TZ is a cylindrical grinding and grooving machine, designed for grinding small ceramic or metallic rod. It can be controlled by a remote control box to set up parameters for grinding and cutting requirements.

Voltage AC 220V (AC 110V 50/60Hz is available with ordering a 500W transformer)
Effective Range
  • Main shaft speed: 100 - 3,000 rpm
  • X-axis travel distance: 160 mm
  • Z-axis travel distance: 100 mm
  • A-axis rotation degree: 360°
  • A-axis rotation tolerance: 360±0.5°
Stepper Motor Accuracy 0.01mm position accuracy
  • Blade diameter: 150±10 mm
  • Blade bore diameter: 12.7 mm
Water Cooling
  • Assemblies of water jetting, draining, and splashing protection are included
  • The optional EQ-ECO-430 Coolant Circulating Tank is NOT included, please click the link to order if needed
Net Weight 40 kg
Dimensions Machine: 510mm x 500mm x 635mm
Control box: 500mm x 400mm x 210mm
Remote control box: 380mm x 310mm x 210mm
Warranty  One year limited with lifetime support - including all electronic and mechanical parts. Damaged parts caused by misuse: such as rusted parts from inadequate storage and broken parts by the user are not covered by the standard warranty.
Certification CE Certified. With an additional certification fee, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per the customer's request.
Operation Instructions
