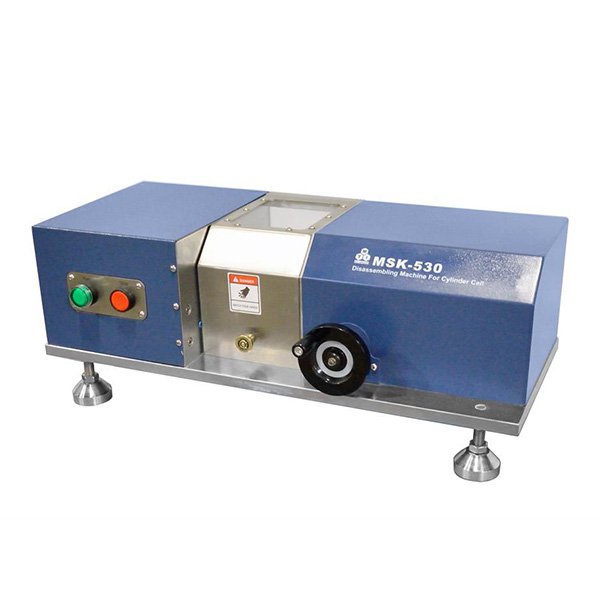

Compact Disassembling Machine for 18650 Cylindrical Cases (Optional Dies available for 26650 or 32650) - MSK-530

0.0/5 rating (0 votes)

Description


MSK-530 is a compact manually-operated machine for disassembling cylinder cases in the battery R&D lab. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with a safety protection cover allows customers to master the disassembling procedure within 5 minutes.  SPECIFICATIONS:
Supply Voltage DC24V  (a 110~240VAC to 24VCD power adapter is included)
Power 100W
Slicing Motor Speed 1000 rpm
Die Rotating Speed 1000 rpm
Micrometer Accuracy 0.05mm
Warranty
  • One year limited with lifetime support (Consumable part such as the cutting blade is not under the coverage of warranty)
  • Parts rusted without regular cleaning and maintenance are not covered by the warranty
Product Dimensions
 590(L) x 300(W) x 230 (H) Lid Closed, mm
 590(L) x 300(W) x 460 (H) Lid Open, mm
Accessories
  • Standard disassembling die for 18650 cases.
  • 5 pcs carbide cutting blades are included. ( click picture left to order spare )
  • Additional die sets are available for 26650, 32650  as options.
  • Cutter for 4680 - 46120 is available upon request at the extra cost
  • Additional blade and pin wrench for changing blades are available upon request.
Net Weight 35 kg
Shipping Weight & Dimensions 100 lbs; 40"x20"x20"
Operation Video
Application Notes MTI also provides MSK-510M series for cylinder case sealing, please order separately from related products below.
Attention Considering the best interest of the blade's service life, low feeding speed is preferred. Normally, 45 seconds is needed to cut through the cylinder casing.
