Compact Disc Crusher / Grinder - MSK-SFM-DS

0.0/5 rating (0 votes)

Description

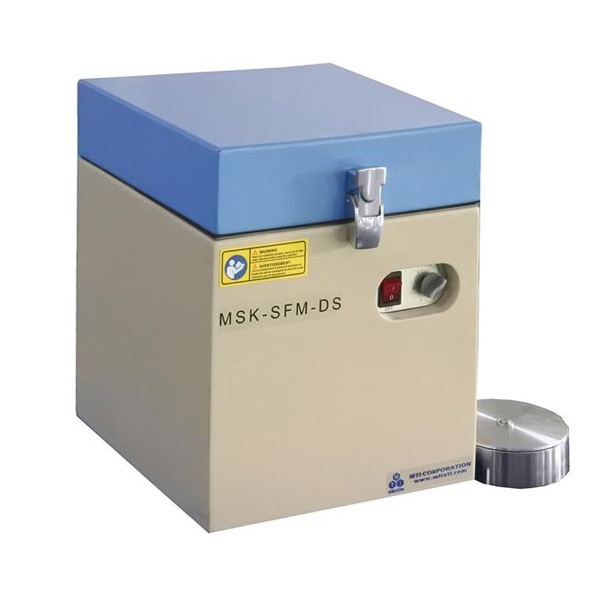

MSK-SFM-DS is a compact disk mill with a steel grinding jar. It is an ideal tool to quickly prepares the sample for finer milling after sintering. It features fast crushing and grinding to prepare the sample for finer milling. An ideal miller for coal, ore, rock, or ceramic compounds.
Note: The appearance of the crusher was updated on 08/25/21.



SPECIFICATIONS

Features

  • Fast crushing and grinding the sample of ceramic and steel to 80-200 mesh before milling
  • Interlock protection is included to cut the power if the lid is open during the crushing process.
  • With Four secure fixtures, MSK-SFM-DS can be fastened on the platform.
  • Click the video left to see how it work for crushing
Working Voltage
  • 220 - 240V AC 50/60 Hz, 200W AC motor
  • For operation at 110V AC, please order a transformer.
Timer 0  to  5 minutes adjustable
Crushing & Grinding Capability

Grinding Jar Dimension
  • The grinding parts are Manganese steel
  • 100 mL capacity for about 50g of material
  • Grinding Jar: 120mm I.D. x 37.5mm Depth (See Fig.4)
  • Material:
  • Material hardness must be lower than Mohs 8
  • Space between grinding disc and jar can contain materials under 20mm in diameter. and 35mm in height. (
Product options
Net Weight 75 lbs
Shipping Weight & Dimensions 110  lbs; 40"x30"x27"
Dimension                 Machine: 250×250×330 mm (L x W x H)
Certification CE Certified
NRTL certifications are available upon request
Warranty One-year limited warranty with lifetime technical support
Operation Video
Application Note
  • Place the grinder on a firm platform and isolated room to avoid noise, it is suggested to fasten the grinder on the platform.
  • Please clean the grinding ring before each use.
