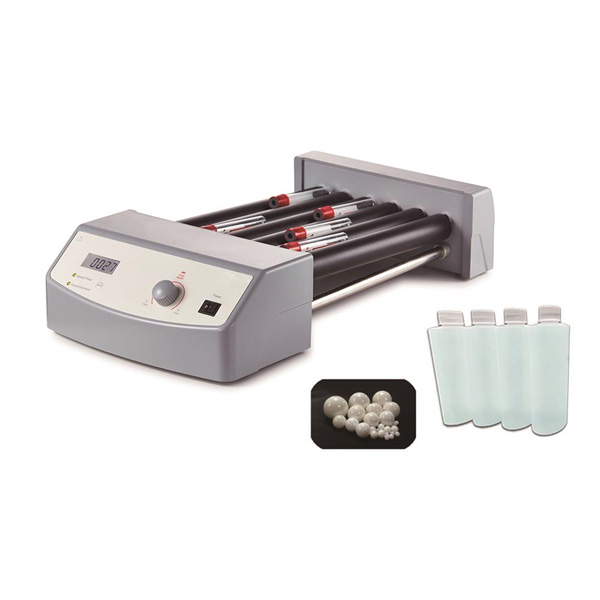

Compact Economic Roller w/ LCD Display for Ball Milling & Mixing (Ar Gas Compatible) - MSK-SFM-TR-2K

0.0/5 rating (0 votes)


The MSK-SFM-TR-2K is a programmable tube roller with a timer setting, which can be used for powder/slurry mixing, ball milling, and rotary coating. and operates inside a glovebox with Ar gas.


  • Eccentric rotation for optimum mixing
  • Brushless DC motor for quiet operation and maintenance-free, long equipment life
  • LCD display with user timer settings (Continuous/timer)
  • This compact roller mill is suitable to use inside glovebox with both Ar and N2 gasses
Input Voltage / Power
  • 100 - 240V, 50/60Hz
  • 30W power
Roller Motion
  • Brushless DC motor with rocking & rolling motion
  • Motor speed: 10 - 70 rpm programmable
  • Mixing timer: 1 - 1199 min programmable
  • Operation type: continuous and timed operation (Attention: Considering the best interest of the service life of the motor & gearbox, the continuous operation period should be limited to <24 hours)
Roller Rod
  • 6 roller rods
  • Amplitude: 24mm
  • Slit width: 7mm
  • Roller rods diameter: 30.5mm
Loading Capacity
  • Max capacity: 2 kg
Operating Temperature
  • 5 - 40°C
Max Operating time in continuous mode
  • In continuous mode, the Tube roller runs until it is turned off. The recommended max time that any user runs it is for max 1-2 days time.
  • Four 8oz ( 236 ml) HDPE Cylinder Bottles are included. Click here to buy more.
  • A 500g pack of 3.0±0.2mm High purity YSZ milling balls (99.5% Yttrium stabilized ZrO2) is included. Click the link to order a different size.
  • One year limited warranty with lifetime support
  • Dimension: 475 mm L x 255 mm W x 105 mm H
  • Roller size (length): 285mm
Net Weight
  • 5.1 kg
Shipping Weight & Dimensions
  • 13 lbs
  • 23"x15"x9"
Video and Operation Instructions
Application Notes
  • Always use the roller on a leveled and stable surface for best performance and maximum safety.
  • The roller works under Ar or N2 atmosphere.
  • If the liquid is spilled on the unit, first disconnect the unit from external power and then clean the unit with a damp cloth.
