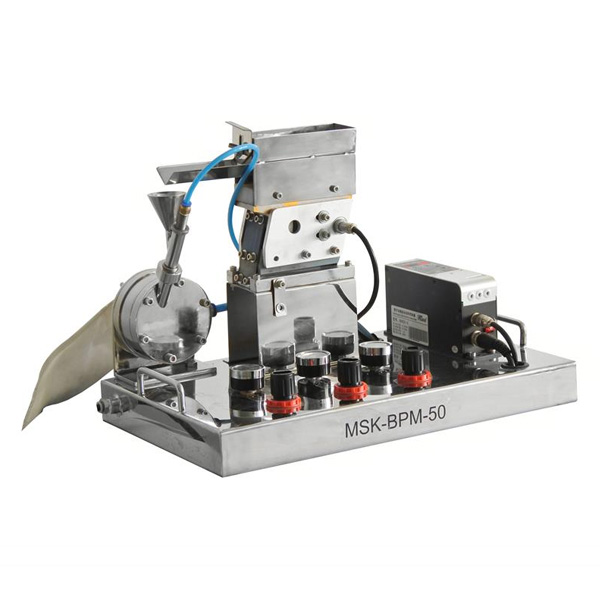

Compact Jet Mill with Speed 50 - 500 g/hr - MSK- BPM-50-2

0.0/5 rating (0 votes)

Description

MSK-BPM-50 is a lab-scale jet mill for materials with various hardness and properties. It grinds materials such as ceramic, magnet, ferrite and metallic alloy into micron-scale powder (2-5 microns) with an output rate of 50 - 500g/hr.
The jet mill grinds with a high-speed jet of compressed air or inert gas to collide the particles with each other. It is capable of outputting particles with the right size while continue milling particles above the desired size. Therefore, the ground product comes in narrow size distribution and good uniformity. Particles are separated from the gas stream by cyclonic separation. SPECIFICATIONS

Working Power
  • 100 - 240V AC, 50/60Hz
  • 350 W
Required Air Pressure
  • Recommended 0.6 - 1.0 MPa Pressure
  • Recommended gas consumption rate: 0.25 - 0.5 m3/ minute
  • An air compressor is required but is NOT included. (Please order one from a local store )
Particle
  • Input: 100 - 200 mesh
  • Output: 2 - 15 micron, 50-500g/hr
  • The output particle size is depended on material hardness and input particle size. Coarse particles may need 3-5 times milling to obtain the finest size.
Particle collecting
  • One output particle collecting bag is included for immediate use
Optional
  • A pre-crushing mat be needed to achieve finer particles during jet milling ( Click pic. 1  to order )
  • An optional sieve can be used to filter the sample to 100-200 mesh to meet the input requirements. Please click the picture (Pic,2)  to order the MSK-SYU-3 sieving system
  • A lab-scale cyclone system may be connected to the jet mill  with a filter collect fine powder easily (Pic. 3-4)
   Pic. 1     Pic. 2  Pic. 3Pic. 4
Mill Liner
  • High purity fully sintered alumina
Powder Feeder
  • Automatic powder feeder controlled by vibration frequency
  • Frequency:    40-400Hz   adjustable
Net Weight
  • 15 kg
Shipping Weight & Dimensions
  • 80 lbs
  • 40"x26"x28"
Dimensions
  •     520 mm(L) x 350 mm(W) x 340 mm(H)

Warranty One year limited warranty with lifetime technical support
Demo Video  Jet milling with filter bag       jet milling with cyclone
