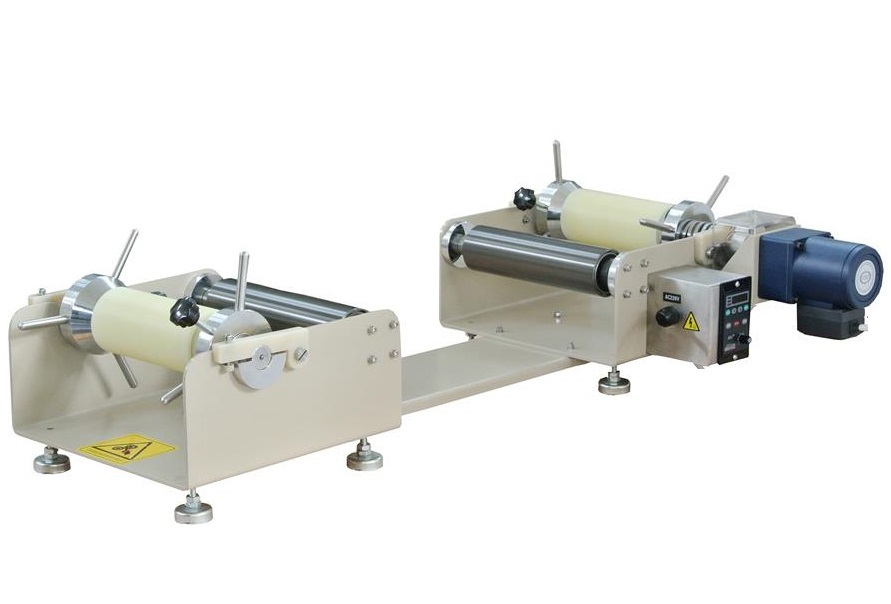

Compact Roll to Roll System for R2R Calendering or Coating Machines upto 8" Width - MSK-HRP-04-RD

0.0/5 rating (0 votes)

Description

MSK-HRP-04-RD is an automatic Roll to Roll system designed for continuous handling of flexible substrate materials less than 200mm wide. It enables the automatic R2R film calendering on MTI tabletop calendering machines (MSK-HRP series). Tension adjustable torque motor for active reeling to maintain a constant tension force on the substrate. SPECIFICATIONS:


Working Voltage

Tension Control Version:
Speed Control Version:
  • 24V DC
  • A 110 - 240 VAC to 24 VDC power adapter is included for immediate use.

Max. Power Consumption

        20W

Front Panel & Speed Control

  • There are two types of speed control, and please choose from the product option
    1. Torque sensor control for R2R rolling press (208V- 240V AC)
    2. Speed control w/o torque sensor for R2R coating machine  (110 - 240 VAC, 24VDC motor)
  •

Reeling Width

  • Width is adjustable from 2" - 8" for the flexible substrate material

Traverse Speed

The film traverse speed is dependent on its calendering speed, normally <1.5 meters/min

Roller's O.D

  • Plastic roll (Min. roller ID 40 mm) is included for winding
  • Customized winding roller with 41mm ID x 50 - 80 mm OD is available upon request at an extra cost

Reeling/Unreeling Roll Diameter

Max. 230mm

Sample Roll Traveling Route

Compliance

  • CE certified
  • Protective Cover is Optional and at an extra cost

Warranty

  • One-year limited warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance are not covered by warranty

Application Notes

  • It is not allowed to use any MTI product in any hazardous location, especially prohibited from using in Class I environments (flammable gasses & vapor)
  • This R2R device can be upgraded with two unwinding rollers which allow you to feed two types of materials into the hot press simultaneously for lamination purposes, which can be DIY R2R coaters


Operation Video



Optional Accessories
