Converting CO2 to Methane Atmosphere Controlled Vibration Ball Milling Reactor (500C @3 bar)- HTVB-50

0.0/5 rating (0 votes)

Description

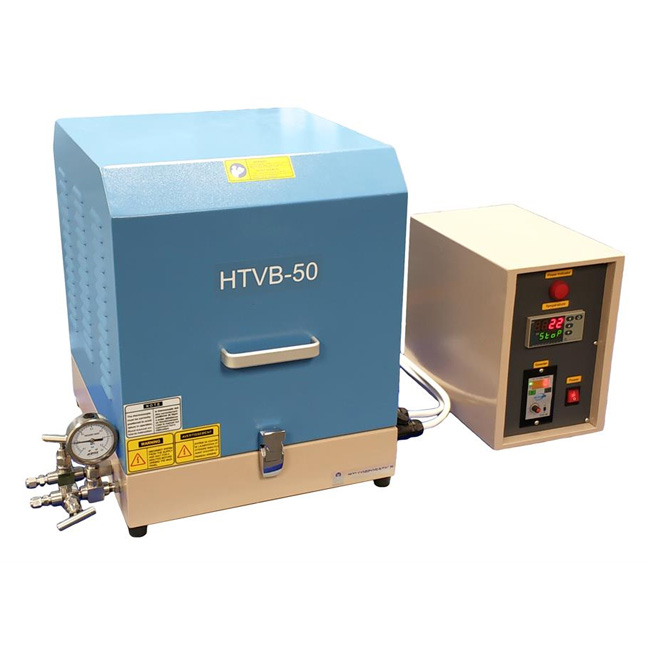

HTVB-50 is a compact high-temperature vibration ball mill with a gas delivery reactor, which can be heated up to 500ºC with a programmable temperature controller with accuracy +/- 1.0 ºC. It is an excellent tool for Mechanochemical activation of catalysts for CO2 methanation
For more applications using a ball mill, please review the article at https://doi.org/10.1002/anie.201810902 Specifications:
Power
  • 110 VAC, single phase 50/60 Hz
  • For 208- 240 VAC, please order a transformer.
  • 1 kW max
Heatable Reactor
(Milling Chamber)
  • The reactor is made of SS 304 with 55mm ID × 61mm OD × 105 mm Depth
  • The heating ring is on outside the reactor, which can be heated up to 500 ºC
  • Precision and programmable temperature control with +/- 1°C accuracy
  • Gas inlet and outlet (1/8") with valves are built in the reactor
  • The reactor is installed on the vibration stage。  Max. The working pressure is 0.3 MPa.  ( You must use a two-stage gas regulator to limit max. pressure from the gas cylinder )
  • Max gas flow rate:  < 5L/minute
  • Extra Copper Gaskets are available at the link below:
  • https://www.mtixtl.com/61mmO.DCopperGasketforConflatFlangeofOTF-1200X-HP-30A-EQ-ORing-Cu.aspx
Working Temp & Pressure
  • Standard:  3 bar Max.   @  500ºC Max.
  • Optional:   20 bar Max.  @ 250ºC  Max. at extra cost
  •                   10 bar Max . @  350ºC Max. at the extra cost
Vibration Stage
  • The vibration stage is driven by a 24V DC motor
  • The vibration speed is adjustable in terms of motor rotational speed 400 - 2000 RPM (6 - 33 Hz)
  • Max. Load: 20Kg
Milling Balls
  • A set of stainless steel milling balls (6 - 20 mm) is included.
  • Please click here to order additional stainless steel balls.
  • Please click here to order additional YSZ balls.
Control Unit
  • The control unit is separated from the reactor.
  • The unit controls both temperature and vibration speed.
Optional
  • The device can be operated inside a glovebox with Ar Gas.
  • If you plan to operate it in a glovebox, KF40 feedthrough may be needed to separate the control unit and reactor
Warranty
  • One year limited warranty with lifetime technical support
Compliance
  • CE certified
  • NRTL certification is available upon request at the extra cost
Operation Video
                Demo Video          Operation Video
