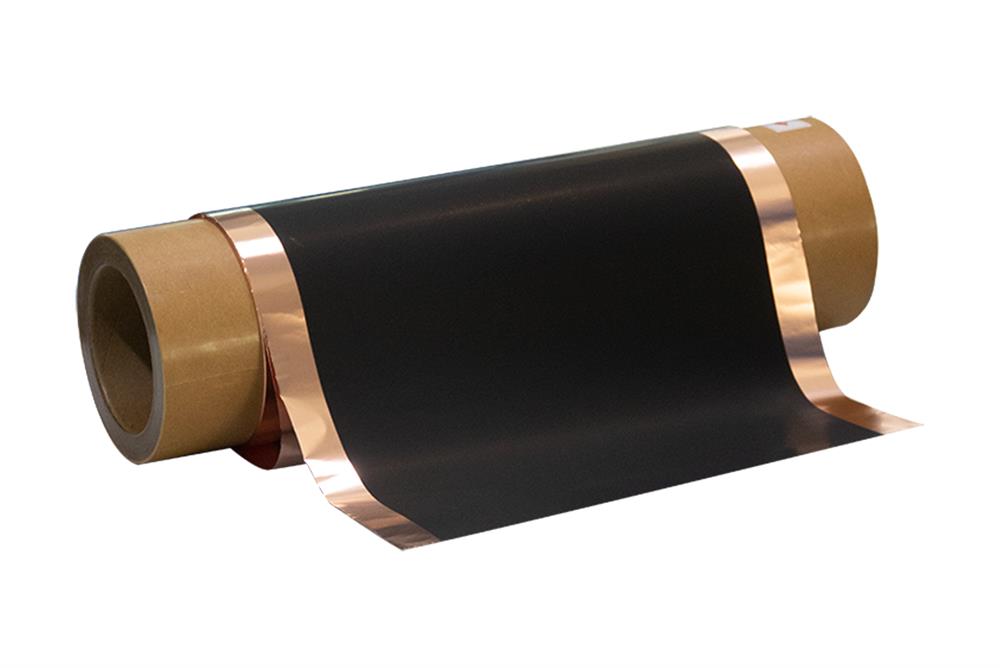

Copper Foil for Battery Anode Substrate w/ Double Side Coated by Conductive Carbon (280mm width x 11 um thick, 1.4 kg/roll) - EQ-CC-Cu-20

Conductive carbon-coated copper foil can replace conventional Al foil as a better anode substrate with improved properties.

• Better electrical conductivity and less internal resistivity
• Better mechanical strength and toughness to avoid short circuit caused by dendrite growth
• Better coating strength with electrode material
• Therefore, it will provide larger discharging capability and longer service life for Li-Ion batteries

SPECIFICATIONS

Conductive carbon coating	Double side coating with 1-micron thickness each side Density: 0.54 g/m2 Surface resistivity:  < 30 ohms per 25um^2
Substrate of Copper	Purity > 99.9% Thickness: 11 micron
Safety Data Sheet	SDS for Cu. SDS for Conductive Carbon.
Package for sales	1.4 (+/-0.2) kg for roll   Length：  40  meter
Coating Width	~ 239 mm
Total Width	280 mm
Thickness	11 um
The cylinder I,D	7.5 cm
Shipping	In vacuum bag
Note & Warning	Please store moisture-sensitive consumables in the vacuum storage box, which will help prevent damages and prolong the integrity of the material. Click here for equipment selection Please always heating the sample under a vacuum oven up to 180oC to remove moisture before use for better results.
Please click picture right to order other battery accessories	Carbon Coated Al                                                      Other Chemical Powders,
Please click the video to see how MTI's slitting machine preparing electrode of cylinder batteries
