Copper Mesh Foil for Battery Anode Substrate (240mm width x 45um thickness x 20 Meter length) - EQ-bccnf-45u

0.0/5 rating (0 votes)

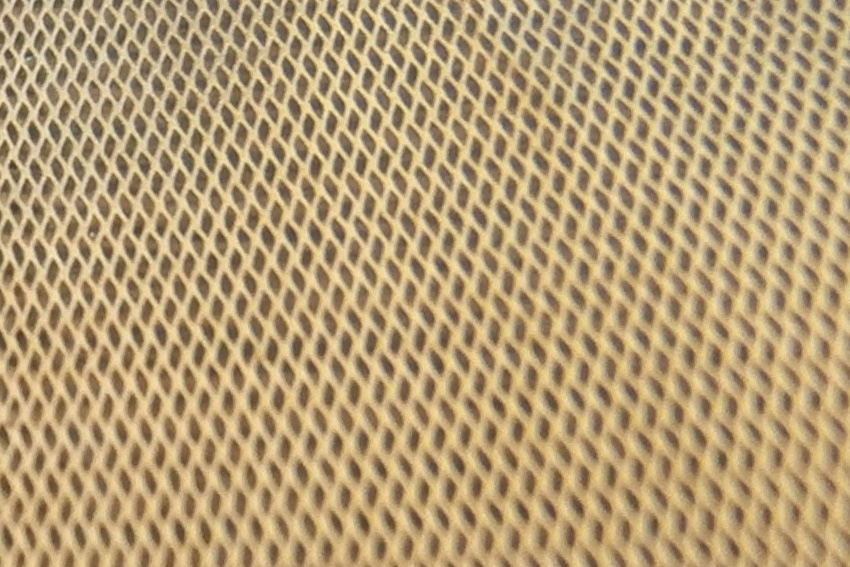

This copper net foil (45 um)  is used as a substrate for coating anode materials in Li-Ion battery research.


  • Material: Copper, Purity> 99.99%
  • Sold in roll only
    Shipped in the vacuum bag
    • Length:  20 meter
    • Width: 240mm
    • Thickness: 45 um
    • Density: 8.94 g·cm−3
    • Surface Density: 180±15g/m²
    • Pore Size: 0.4*1.5mm
    • Open area: ~55%
    • Net weight:  1.5 kg per roll
  Click the video below to see the battery anode coated
by MTI's Film coater MSK-AFA-II-VC
