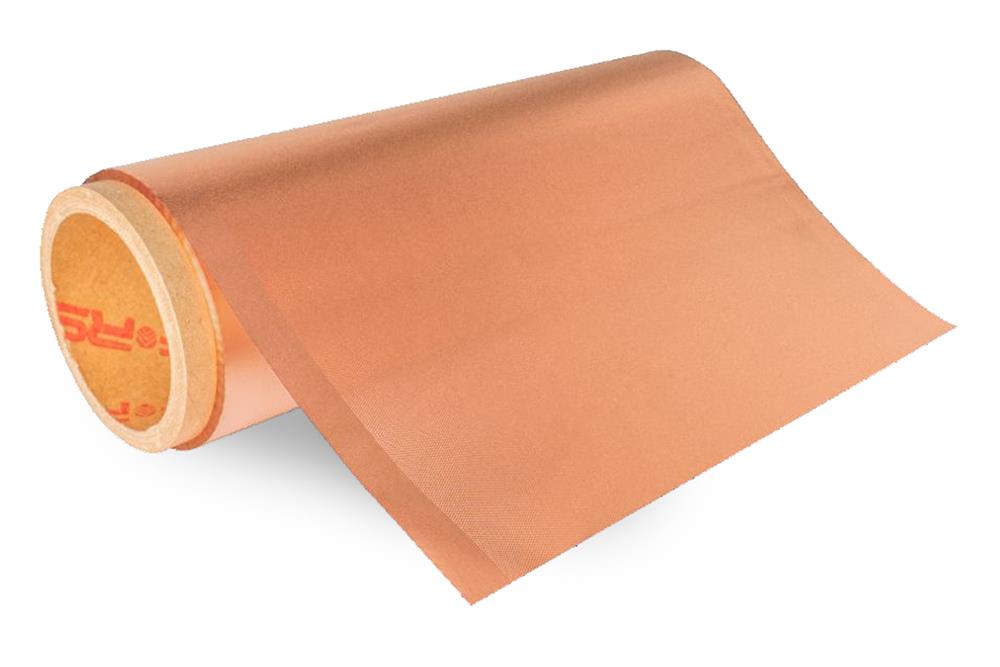

Copper Mesh Foil for Battery Anode Substrate (290mm width x 11um thickness x 80 Meter length) - MF-Cu11D25-net

0.0/5 rating (0 votes)


This Copper Mesh Foil (11um)  is used as a substrate for coating anode materials in Li-Ion battery research.


  • Material:
  • Cu+Ag≥99.8%, Zn≤0.06%, Ni≤0.01%, Cr≤0.02%
  • Sold in roll only
    Shipped in the vacuum bag
    • Length:  80 meters
    • Width of Foil Width: 290mm
    • Width of Porous Area: 260mm
    • Thickness: 11 um
    • Pore Size:0.25mm
    • Distance between Pore: 0.8mm
    • Net weight:  2 kg/roll
  Click the video below to see the battery anode coated
by MTI's Film coater MSK-AFA-II-VC
