CR2016 Case with One Side Kapton Window (10mm) for In-situ X- Ray Analysis - 5 set/pck - CR2016-Kapton

0.0/5 rating (0 votes)

Description

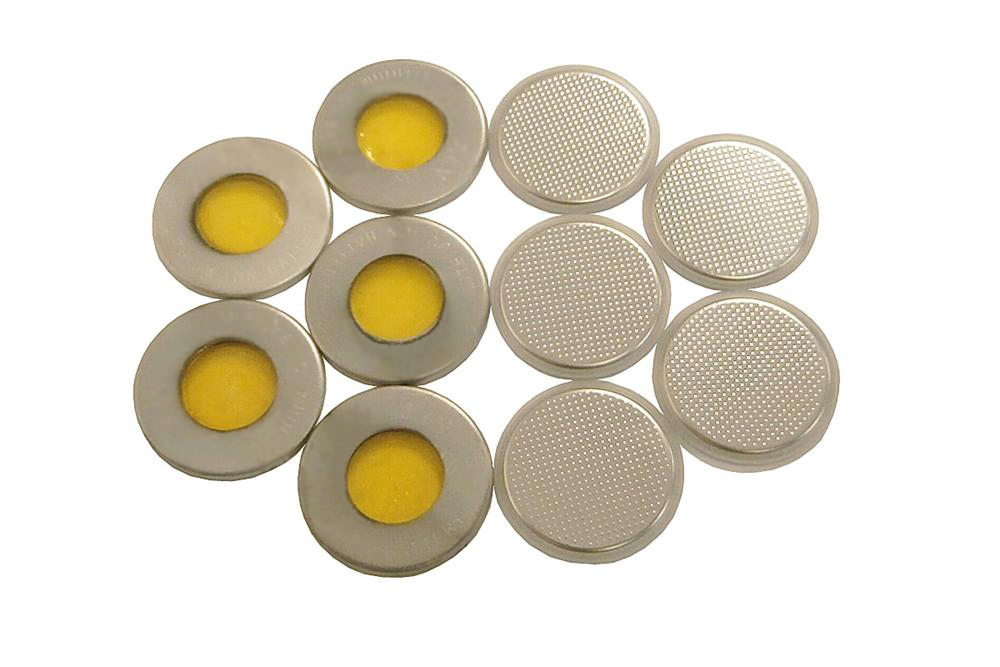

EQ-CR2016-Kapton are special CR-2016 coin cell cases with 10mm Kapton windows (5 set/pck). The window is designed for in-situ X-Ray analysis of battery material phase variations during charging and discharging.
5 set of CR2016 casing per package Kapton window for X-Ray beam penetration. PP (Polypropylene) sealing O-ring. Compatible with MTI's MSK-110 crimper	Please click the video above to view  How to assemble a coin cell battery	Please click the video above to view How to make a coin cell by MTI's machine

Specifications
Dimensions (Dia x Height)	20mm x 1.6mm
Kapton window thickness	0.18mm
Coating	The positive side of the casing is coated with aluminum
Al coating thickness	< 0.01mm
Weight	0.25 Oz (7 grams)
Cell Assembling Structure & Instruction Manual
Application note	In order to get better in situ XRD curve for battery, please use carbon foil as current collector instead of Al or Cu foil, which will absorb X-ray.  For better in-situ observation, electrode material shall face the window.  you may use lab press and dry pressing die below to prepare an electrode pellet instead of using electrode coated Al or Cu foil.
