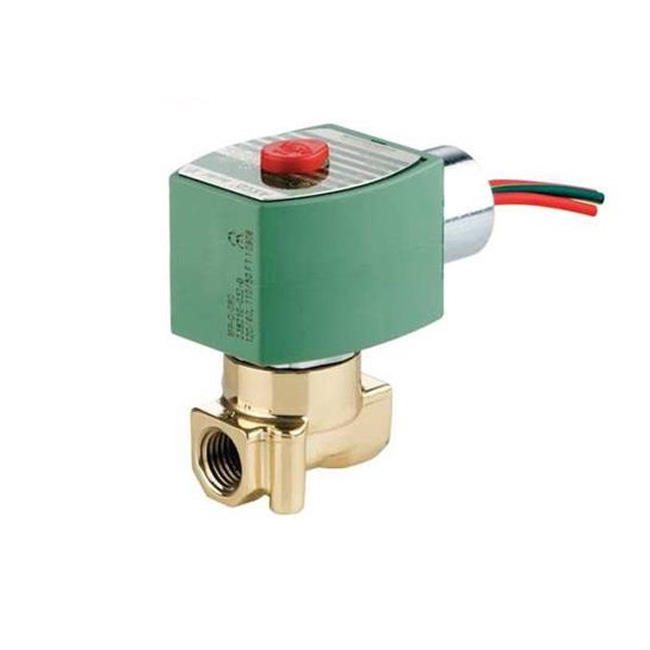

Cryogenic Solenoid Valve, 24VDC, 1/4" Female NPT, Min Temp. -195℃ , EQ-CGSN-Valve-LD

EQ-CGSN-Valve is 2-way normally closed, direct-acting solenoid valves designed for cryogenic service. Valves may be provided with a general purpose or watertight/explosionproof solenoid enclosures. Specification

Name	Cryogenic Solenoid Valve
Valve Ways and Position	2-Way/2-Position
Valve Configuration	Normally Closed: Valve is closed when solenoid is de-energized; open when energized.
Media (Valves)	Air, Ammonia, Cryogenic, Fuel Oil, Inert Gases, Light Oil, Liquid Propane, Natural Gas, Oxygen, Steam, Vacuum, Water
Pipe Size (Valves)	1/4"
Min. Operating Pressure Differential	0 psi
Max. Operating Pressure Differential	Air/Inert Gas: 42 psi Light Oil: 42 psi Water: 42 psi
Environmental Rating (Valves)	Corrosive, Hazardous, Indoor, Outdoor
Valtage	24 VDC
Coefficient of Volume	0.73
Body Material (Valves)	Brass
Coil Insulation Class	H
Seal Material (Valves)	PTFE
Orifice Dia.	7/32"
Watts	22.6
Overall Dimension	1-9/16" x 1-61/64" x 3-5/32" (LxWxH)
NEMA Rating	1, 2, 3, 3S, 4, 4X
Coil Enclosure	Watertight No Junction Box
Electrical Connections	1/2"Conduit w/8" Leads
Max. Fluid Temp.	120 ℉ (49℃)
Min. Fluid Temp.	-320 ℉ (-195℃)
Seat Material	PTFE
Disc Material	PTFE
Standards	CSA Certified, Meets Applicable CE Directives
