Customized Splittable Dry Pressing Die for Ring Type Sample - Die-Ring-C

0.0/5 rating (0 votes)

Description

Die-Ring-C is a customized drying pressing die for making annular samples.

SPECIFICATIONS:

Dimension of die
  • ID:    20 - 35mm ( +/- 0.01 mm )
  • OD:   40 - 70mm
  • Height:   25 - 50 mm
  • The customer must provide the drawing of the ring-type sample with tolerance for quotation
Materials
  • Cr12MoV
  • Hardness: HRC 60
 Max. Load
  • 350 MPa

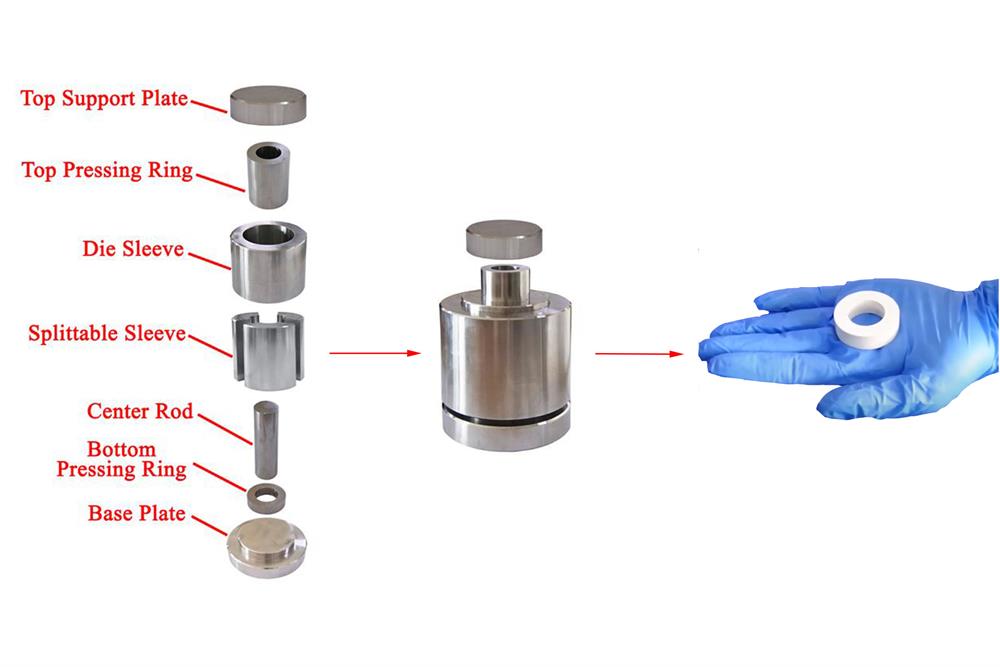

Pressing die installation schematic
Instruction


Application Notes
  • To get the better density of samples, please considering using a cold isostatic press (CIP)
  • Small particles may slip into the gap between the pushing rod and steel sleeve and cause damages to the sleeve during the compression. We recommend using 32~75 microns powder to avoid damages.
  • Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to get 32~75 microns particles
  • Please use alcohol to clean the pressing die every time before and after use
  • Store it in a dry place with antirust oil after the operation to avoid rusting.
  • For pressing sticky metal powders such as Al, Mg, Zn, it is necessary to use dry or alcohol-based lubricant to lubricate the die and sleeve set to reduce friction during the compression.
  • Please must always wear protective goggles during the operation !!!
Warranty
  • Pressing Dies are consumable products and are not covered by MTI's warranty.
