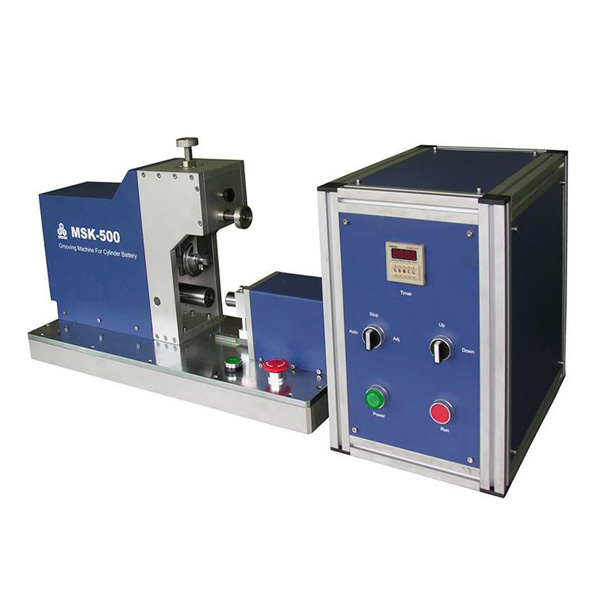

Desk-top Semi-Auto Grooving Machine for Various Cylinder Cell - MSK-500 Series

MSK-500 Series is a CE Certified semi-auto grooving machine. It is used for grooving various cylindrical cases including CR123,18650 26650, 32650 and AA.
MTI has granted the patent 201120464651.8 for the Cylindrical Cell Grooving Machine MSK-500 Series since July 2012.

SPECIFICATIONS:

Working Voltage	110V/220V AC, 50/60Hz Single Phase
Max. Power Consumption	140W
Air Pressure	>0.5 MPa is required (Air Compressor is not included, please click here to order) Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.   pic1                pic2
Compatibility	CR123 / 18650 / 26650 / 32650 / AA (Please select the cell type in the option bar)
Grooving Dimensions	Depth: 1.2 - 2.0 mm Width: 1.1 - 1.5 mm
Grooving Accuracy	+/- 0.1 mm
Grooving Blade Durability	>1 million times
Productivity	400 grooving per hour
Product Dimensions	600mm(L) x 230mm(W) x 350mm(H) (24" x 9" x 14")
Net Weight	68 kg (150 lbs)
Compliance	CE Certified
	Patten Number : ZL-2011-2-0464651.8
Warranty	One year limited with lifetime support   Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Operation Video
Application Notes	Customized die for other cylindrical cell types is available upon request It is necessary to seal the cap of the cylindrical case by using the MSK-510 sealing machine after grooving the opening end Each machine should be used with one particular type of grooving die only. A separate set of machine is suggested to use for another set of grooving die. Each type of cylinder cell can only be grooved specifically by a certain model of this equipment. Please select the type of cylinder cell in the Product Options dropbox to check the model number and price for the corresponding grooving die of each cylinder cell type Please check the chart below to order the cylindrical cases. P/N Description (click to view details) Case Dimensions EQ-Lib-CR123 100 pcs CR123 cylindrical case EQ-Lib-18650 100 pcs 18650 cylindrical case EQ-Lib-26650 100 pcs 26650 cylindrical case EQ-Lib-32650 60 pcs 32650 cylindrical case EQ-Lib-AA 100 pcs AA cylindrical case EQ-Lib-AAA 100 pcs AAA cylindrical case
