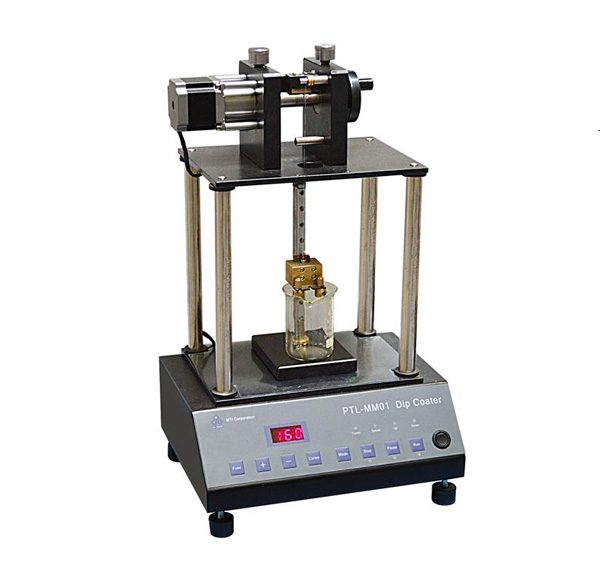

Desktop Dip Coater with variable Speed (1-200 mm/min) - PTL-MM01

PTL-MM01 is a CE certified Desktop Dip Coater designed for R&D Lab to prepare various optical or epitaxial films from a liquid solution.

Dipping/Pulling	Dipping/Pulling Speed:        1-200 mm/minute Adjustable via a digital panel Travel Distance:                  0-200mm Adjustable via a digital panel
Voltage	AC 110V/220V
Sample holder	Two screw sample clips are installed in the sample holder to carry the samples sliding up and down through one precision ball bear guide rod (ball bear guide rod updated from Sep. 6, 2014)
Beaker Holder	The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder
Solution container	One 150ml beaker is included
Max. Sample size	50mm(L) x 25mm(W) x 2.5mm(T)
Sample weight	Less than 250g
Dipping/Pulling Motor	DC Stepping motor
Product dimension	320mm(L) x 255mm(W) x 540mm(H)
Certificate	CE Certified
Warranty	One year limited with lifetime support
Operation Video
Application Notes	In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on picture  1 below for more information) Use an ultrasonic processor to disperse nanopowder or homogenize solution to get better coating (Please click on the second picture below for more information)  Pic. 2 Extension frame will support coating for a larger sample (Please click on the third picture 3)  Click to learn about the Fabrication of colloidal self-assembled monolayer (SAM) using monodisperse silica and its use as a lithographic mask. You put the coater into a vacuum glove box for coating under vacuum ( Click Pic. 4 to order )           Pic.1            Pic. 2     Pic. 3  Pic. 4
Net Weight	45 lbs
Shipping Weight & Dimensions	75 lbs  40" x 30" x 30"
