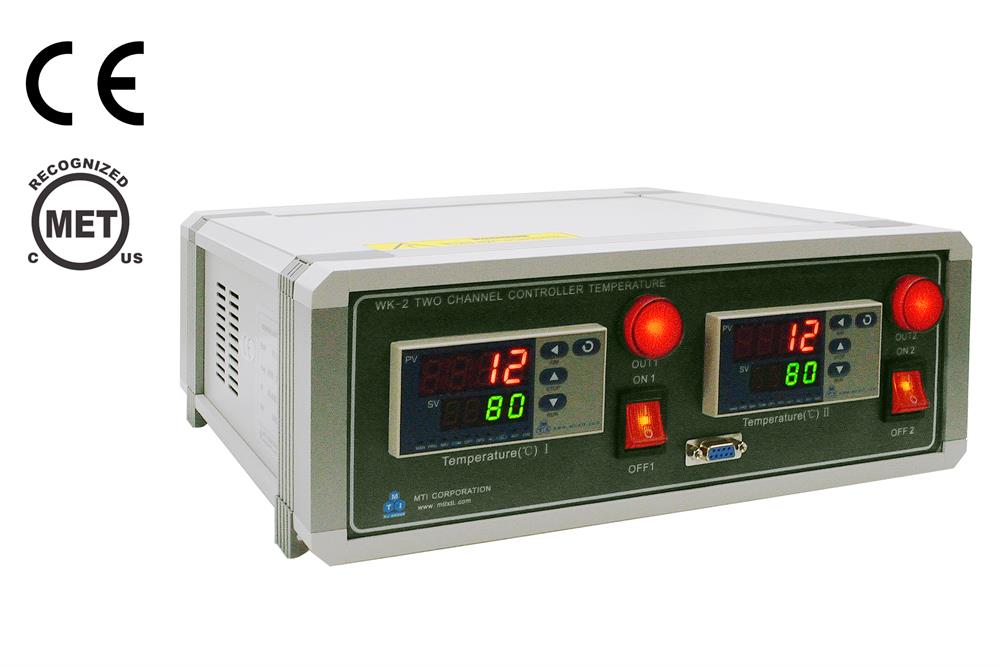

Dual Temperature Control Unit (PWM) with 30 Segments Programmable for DIY furnace 2KW - EQ-MTC-C4-2

0.0/5 rating (0 votes)

Description



  • WK518P duo temperature control unit is designed for precision control of high-temperature furnace from 500 - 1500oC with heating elements of resistant wire or SiC.
  • Just connecting the power cord and thermocouple with the unit, you can run your furnace automatically.
  • The controller uses PID via SCR power control with 30 segments programmable.
  • Built in "auto tune" function allows you to adjust furnace temperature with minimum over-shooting.
  • Built in Protection to cut-off power for over-temperature.
  • Specifications:

    Input & Output
    Voltage
    Input power: 220V AC / Output power: 220V
    Max. Power

    2000W

     Thermocouple Accepted

    J, K, T, E, N, B, R, S,( thermo-couple is not included)

    • J range: -310 to 1832oF (-190 to 1000oC)
    • K range: -328 to 2502oF (-200 to 1372oC)
    • T range: -328 to 752oF (-200 to 400oC)
    • E range: -328 to 1832oF (-200 to 1000oC)
    • N range: -328 to 2372oF (-200 to 1300oC)
    • B range: 392 to 3272oF (200 to 1800oC)
    • R range: 32 to 3214oF (0 to 1768oC)
    • S range: 32 to 3214oF (0 to 1768oC)
    • Please click picture below to order a thermal couple
    • Thermal Couples ( K, S, B type ) & Calibration Kit Thermal Couples (K, S, B type) & Calibration Kit
    Temperature Control
    • The controller uses PID via SCR power control
    • 30 segments programmable for heating rate, dwell temperature and time, and cooling rate
    • Control accuracy  +/-1.0 oC
    Overall Dimension (mm)
    350 x 300 x 140mm (L x D x H)
    Back View
    Certificate Met and CE recognized ( Controller alone )
    Operation Instructions
     Note
    • This temperature controller is designed for lab furnaces heated by resistant wire and SiC elements up to 1500o
    • Please click here or the pictures below to view our single channel temperature control unit.
