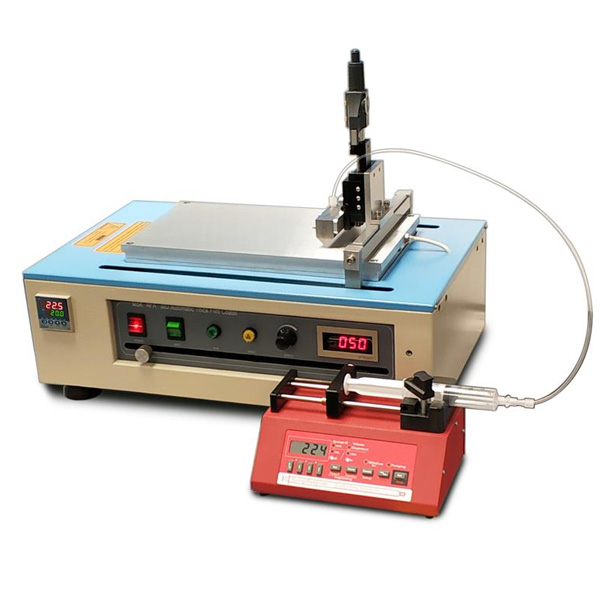

Economic Flat Slot Die Coater (optional 50 or 100mm Width) w/ Heating Vacuum Bed -MSK-AFA-III-FSC

0.0/5 rating (0 votes)

Description

MSK-AFA-III-FSC is an economic flat slot die with a 100mm coating head.  It is an excellent tool to research film coating for perovskitesolar cells, fuel cell proton exchange membrane, and the battery electrode.



SPECIFICATIONS

Working Power
  • 110VAC  or 208 - 240V AC 50/60Hz selectable from product option
  • 1500W
Slot Died head
  • Slot die head fixtures with coating widths of  50mm and 100 mm are available in the product options bar



Syringe Pump

  • Digital Controlled Infusion Syringe Pump and connection pipe are included
  • Displays total volume dispensed in mL or µL units
  • The maximum pumping rate of  25 mL/hr with a 60 mL syringe
  • Precise reproducible flow rates
  • Selectable infusion rates units: mL/hr, µL/hr, mL/min, µL/min
  • Click the picture left to see detailed specs.

Micrometer Head

Tavel Speed & Length
  • Travel Speed:        0 - 80mm/sec variable
  • Travel distance:     0 - 400 mm  adjustable
Heated Vacuum Bed
\
  • Vacuum chuck made of aluminum alloy with the small hole
  • Vacuum chuck Area:  200 mm(W) x 365 mm(L)  (8"W x 14"L)
  • Heating elements are installed inside the chuck which can reach 100ºC Max.
  • Precision digital temperature controller with +/- 1ºC accuracy
  • One high temperature temped glass plate is put on the vacuum chuck, and substrate will be put on the top
Options
  • Please click the checkbox to order a 120L/min Oilless Vacuum Pump for holding the glass plate on the vacuum chuck easily ( Clic Pic. 1 to order)
  • In order to achieve better coating by the slot die, the slurry's  Viscosity and dispersion is very important, please click picture 2 below to order the Viscosity meter and dispersing machine ( Pic. 3)  and find the best parameter for your coating
  • Top UV drying cover is available at extra cost for UV-sensitive material. ( Pic. 4)
  • Warning: You shall put the coating machine inside of fume hood  ( click Pic 5 to order )
  Pic. 1Pic. 2Pic. 3    Pic. 4    Pic. 5
Product Dimensions  Click the picture to see the detail
Compliance CE certified
NRTL or CSA certification is available upon request at the extra cost
Application Note
  • Coating thickness is not dependent on or equal to the gap between the slot die head and substrate.
  • Usually, the gap shall be larger than the coating thickness. Coated thickness is strongly dependent on slurry viscosity, coating speed, and flow speed.  ( Lower viscosity, low flow rate, and low speed will result in a thinner film。 Please practice finding the best parameters which suitable for you
  • Example:  5% carbon+ polymer,  viscosity: 500mPa·s,  substrate: Al foil of 16 um,
    • Gap: 200 um,  Slurry feeding rate:: 0.1 ml/minute , Coating speed: 12mm/s
    • Coated film thickness:  10 um +/- 2 um
Warranty One year limited warranty with lifetime support
References
Operation Manual & Video


Net Weight 40 kg
Shipping Dimensions 48"(L) x 40"(W) x 37"(H)
Shipping Weight 200 lbs
