Electric Ring & Disc Cutter with a Die (OD26 x ID19 mm ) for Li Foil - MSK-T-13A

0.0/5 rating (0 votes)

Description

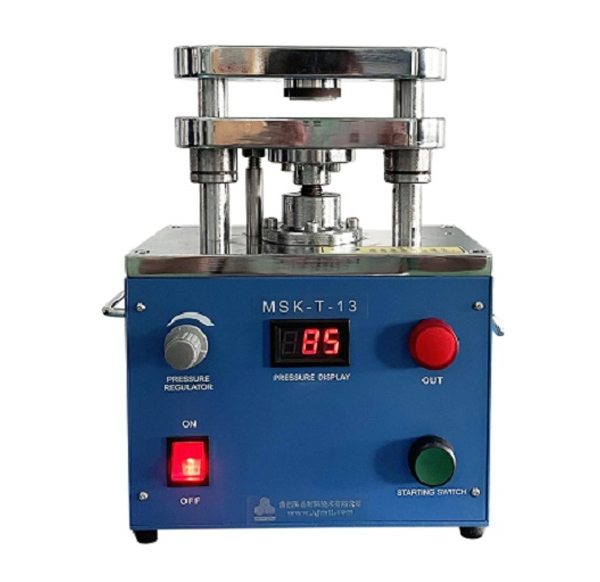

MSK-T-13 is a compact electric ring cutter, which is designed for cutting the ring from lithium foil to fit MTI Three-Electrode Split Test Cell.  It also can cut round disc and rectangular type sheets from Li, Al, and copper foil with an optional cutting die.   T-13 cutter is driven by DC motor and compatible with Ar gas environmental. , it is compact enough to be put into a glovebox through its Antechamber

SPECIFICATIONS:

 Power
  • 110 - 240V AC (50/60Hz) NRTL certified power adapter for worldwide use
  • 24V DC motor with reducing gear, 15W. The operation is very safe without further certification
Pressure
  • The cutting pressure is adjustable with a digital display
  • Pressure 0 - 1400 kg
  • Note: Display unit is %, not force value
  • For cutting Li, copper, and Al only
Cutting Die

  • One ring type of cutting die is included for cutting ring with OD 26 mm x ID 19 mm
  • The ring is fitted into MTI Three-Electrode Split Test Cell
  •  The customized die is available for cutting round disc and rectangular sheet
  •
  • Round disc:    ≦φ60mm                 Rectangular sheet:      ≦80*60m
Product Dimensions
( Click Picture to see details)
Compliance
  • CE certified
  • NRTL or CSA certification is available at the extra cost
Warranty
  • One year limited manufacturer warranty with lifetime support
  • Rusting and damage due to improper storage conditions or maintenance are not covered by the warranty
Operation Manual
Net Weight 10 kg (22 lbs)
