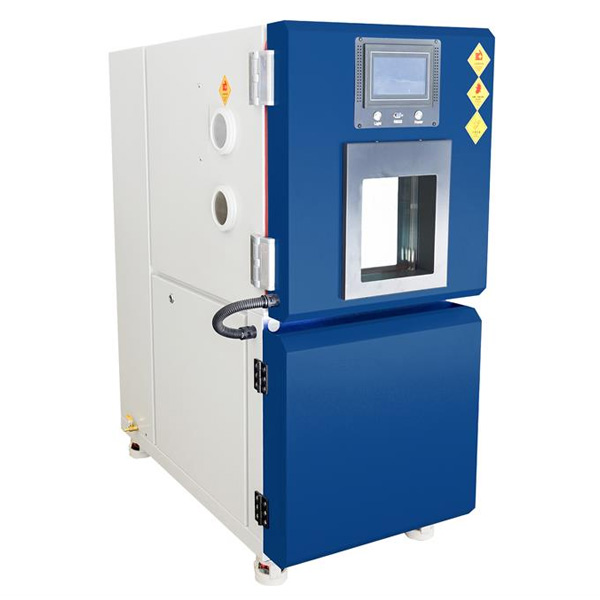

Explosion-Proof Temperature & Humidity Test Chamber (0 - 100 ºC, 20% - 98% RH, 80L) - MSK-TE906-H80L

0.0/5 rating (0 votes)

Description


MSK-TE906-H80L is an 80L Environmental Chamber for Temperature and Humidity (HTHH) test of rechargeable battery & battery packs and other thermal tests from 0ºC to  +100ºC and from 20% to 98% relative humidity.

SPECIFICATIONS
Power
  • Voltage: 208 - 240VAC (single-phase, 50/60 Hz)
  • Power: 4 kW
Test Chamber Features
  • Made of SS304 stainless steel with thermal insulation of foam polyurethane and fiberglass
  • Inside Dimensions: 400 mm W x 500 mm H x 400 mm D
  • Pressure Relief Door: 310 mm x 302 mm
  • Window: 420 mm x 270 mm, vacuum sealed
  • Capacity: 80 Liters
  • Testing Hole: 2 holes with 100 mm diameter
Heating & Cooling System
  • Range: 0ºC  to +100ºC
  • Resolution: +/- 0.5 ºC
  • Accuracy: +/- 2 ºC
  • Heating rate: 4 - 5 ºC/min (nonlinear)
  • Cooling rate: 1 - 1.2 ºC/min (nonlinear)
Humidity Control
  • Range: 20% - 98% RH
  • Accuracy: +/- 2.5 RH
Compliance
  • CE certified
  • NRTL or CDSA certification is available upon request at the extra cost
Operation Environment
  • Temperature: 25 ± 3 ºC
  • Humidity: 30% - 90% RH
  • No vibration or electromagnetic interference
Machine Dimensions
& Weight
  • 1250 mm Lx 1200 mm W x 1450 mm H
  • 350kg
Warranty
One year limited manufacturer's warranty with lifetime support; extended warranty available upon request at an additional cost
