Fast-Entry Doors

0.0/5 rating (0 votes)

Description



Enable quick and convenient access into vacuum vessels, such as process chambers and load locks.

Features

  • Offered in a wide range of UHV flange sizes, with or without viewport glass
  • Precision-hinged doors seal with a fluorocarbon o-ring

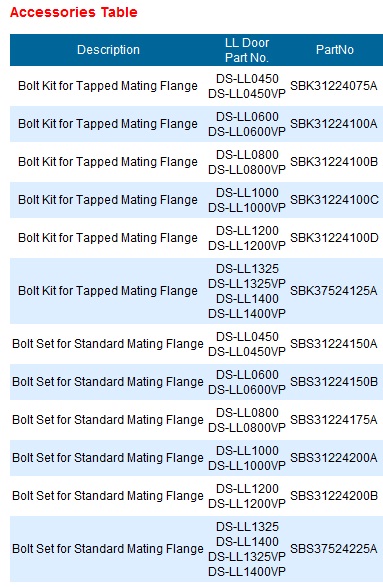

  • Lesker unique counter-bored mounting bolt design enables a maximum diameter opening through the door (order appropriate socket head bolt sets and kits below)
  • Viewport glass is sealed with an o-ring and is easily removed for cleaning or replacement
  • Threaded knob is engaged to keep door closed during pumpdown
  • Comes standard with Borosilicate viewport glass. Replacement Quartz glass available.

NOTE:

  • It is recommended the knob be disengaged during the vent cycle to prevent over-pressurization of the vessel

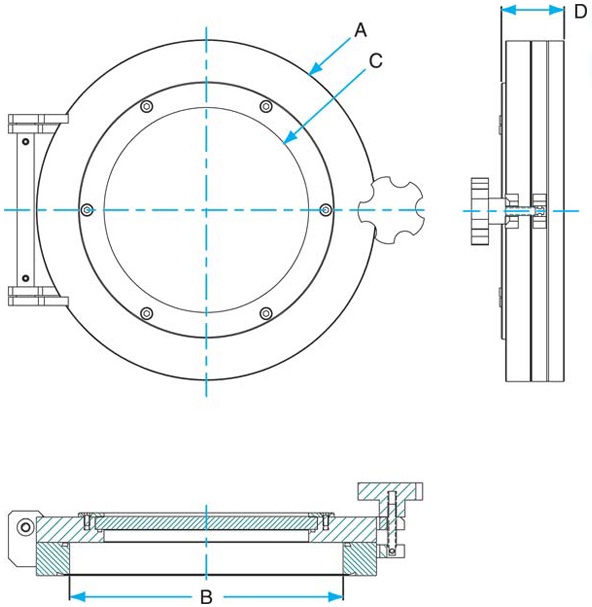

Dimensional Drawing



Lesker Fast-Entry Doors
