Faster Roll to Roll Coating System (400mm Width) for Pilot Scale of Battery Electrode - MSK-AFA-E400-LD

Name: Faster Roll to Roll Coating System (400mm Width) for Pilot Scale of Battery Electrode - MSK-AFA-E400-LD
Brand: Premier Solutions Pte. Ltd

0.0/5 rating (0 votes)

Description

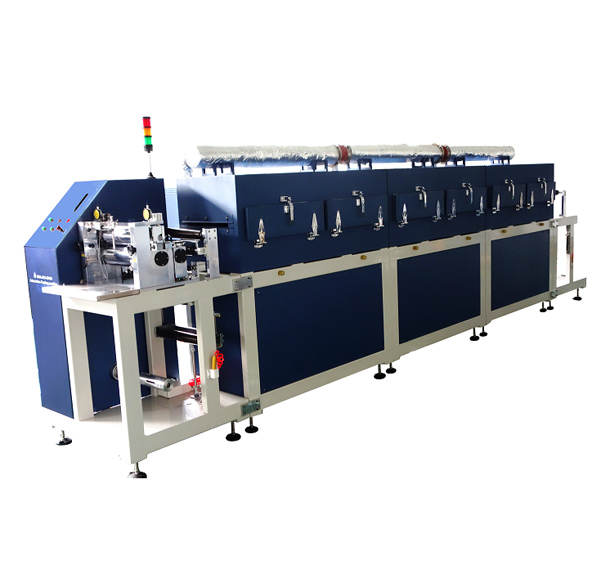

MSK-AFA-E400-UL is a CE Certified and UL inspection ready automatic and faster roll to roll coating system for battery electrode with 4 meters/minute max. coating speed ) It is perfect for prototypes of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's utmost convenience.
For Roll to Roll Coater Service, please fill in the Roll to Roll Request Form.

SPECIFICATIONS:

Working Voltage	208 -220V, 50/60 , 3 phases, ( standard ) 380V, 50/60 Hz, Three Phase ( optional) 460V, 50/60 Hz, Three-Phase available upon request
Max. Power Consumption	30 KW ( 100A Air breaker required )
Coating Method	Transfer coating method for better density and uniformity ( Pls click Pic below to see detail )
Max. Coating Width	400mm
Coating Speed	Max. 4 meter / minute
Thickness Precision	± 3µm (± 5µm at edges)
Max. Drying Temperature	150°C
Temperature Accuracy	±1°C
Heating Zone Length	4.5 Meter （ 3 zones， 1.5 meters per zone )
Reeling/Unreeling Shaft	75mm (ID)
Max. Reeling/Unreeling Diameter	250mm (OD)
Max. Coating Length	Depending on coating and substrate thickness. Typically, 10um thick foil with 100um coating can get 600 meters of electrode length coated per run
Slurry Stirring	SS316 Moving Rod
Compressed Air	0.5-0.8 MPa (Air compressor not included. Please click here to order) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator. pic1 pic2
Optional	You may order Dual-Filtration System for NMP Vapor and connect it to the coating system for keeping environmentally healthy.
Product Dimensions	L6500mm x W1200mm x H 1600mm
Compliance	CE Certified All electric components ( >24V) are UL / MET / CSA certified NRTL or CSA certification is available upon request at te extra cost
Warranty	One Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Operation Manual & Video
Application Notes	Please use Acetone to clean and dry the doctor blade, slurry feeder, and roller to avoid rusting On-site Training is available for customers within the US only (Expenses will be covered by customers) Test the flexibility of the coated electrode with EQ-MBT-12-LD mandrel bending tester. ( Click pic.1 below for detail.) PET Film with single side Si Coating is available for Roll-to-Roll tape /slot die / Micro Gravour casting of Li-ion battery electrode slurry, ceramic, functional resin, ink, and others. Please click Pic.2 below to view the product. Please click Pic 3. below to view Vacuum Mixing to Roll to Roll Coating Flow Chart Pic.1 Pic.2 Pic.3
Net Weight	1000 kg
