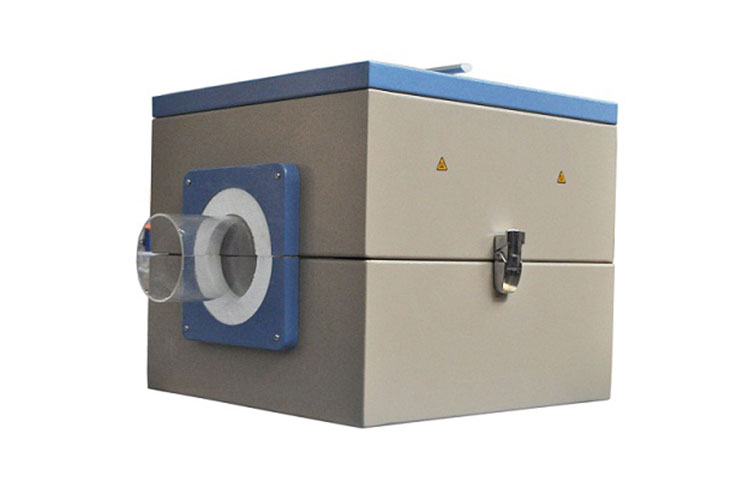

Furnace Heating Module with Thermocouple for Short 5" Tube Furnace - OTF1200X-M-H

0.0/5 rating (0 votes)


OTF1200X-M-H is a short Split furnace module which can accept processing tube from 3" - 5" diameter for DIY or customized furnace. Also can be used for replacing Vacuum Heated Pressing Furnace up to 1100ºC with 4" Quartz Tube and Water Cold Flange - OTF-1200X-VHP4
  • Fibrous Al2O3 liner for 3" - 5" diameter tube
  • Splittable steel casing with high-temperature plastic painting
  • Heating elements is installed inside liner with 1100C Max. working temperature
  • Heating Zone Length:   12" ( 300 mm )
  • Power Requirement:     208- 240VAC, single phase,  2500W Max.
  • Can accept processing tube and flange ( not included )  from 3"  to  5" diameter x > 600mm L ( Please order tube adaptor and thermal block separately)
  • One K type thermal couple is included
  • Two wires from the module:  Power cable to connect  AC output from controller and K type thermal couple to connect the controller
  • Please click Picture below-right to order temperature controller ( please choose 220V temperature controller only )
  • Dimension:
