Hand-Held Disc Cutter with One Set of Ring Dies with ID 8,15, 18, 20 mm - MSK-T-12

0.0/5 rating (0 votes)

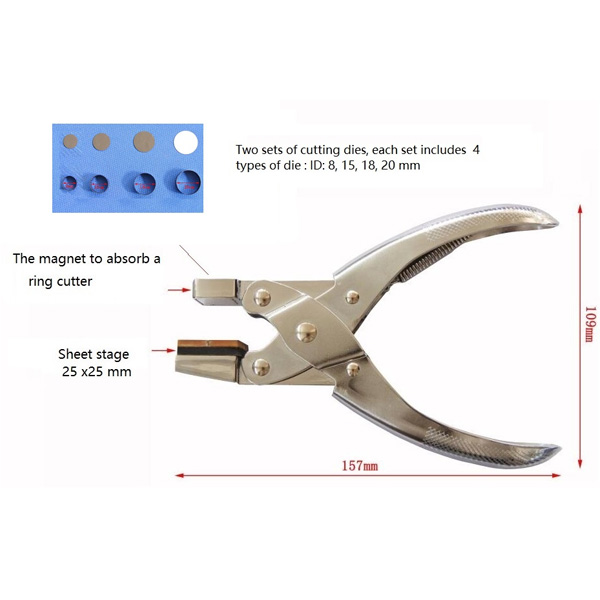

MSK-T-12 is a hand-held disc cutter with 1 set of cutting dies, each set includes 4 types of dies (ID: 8, 15, 18, 20 mm).  It is an excellent and cost-effective tool for cutting round electrode disc up to 0.3 mm thickness, such as Al, Cu, Li, and coated battery electrode sheet. It is easy to change the cutter via a permanent magnet holder and good for operating in a glovebox. Specifications:

Ring Cutting Die
  • One set of ring cutting dies is included in the standard package
  • Each set includes 4 types of cutting ring at 8,15, 18 and 20 mm (ID)
  • The permanent magnet is used held ring cutting die and easy to replace
  •      (click below demo video to see the details)
Cutting thickness
  • 0.2 mm Max. for soft metallic foil with coating
Cutting Accuracy
  • ± 0.01mm
Product Dimensions
  • 157 x 109 mm
  • One-year limited manufacturer warranty with lifetime support
  • Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty
  • Note: Spare cutting die shall be stored in the dry box to avoid rushing
Net weight 0.5 Kg
Instruction and Video
   General video                                    How to make a coin cell
