Hard Carbon Coated Al Foil for Na-ion Battery Cathode (241 L x 200 W x 0.11 Thickness mm) 5 sheets/bag - bcaf-BHCss
Description

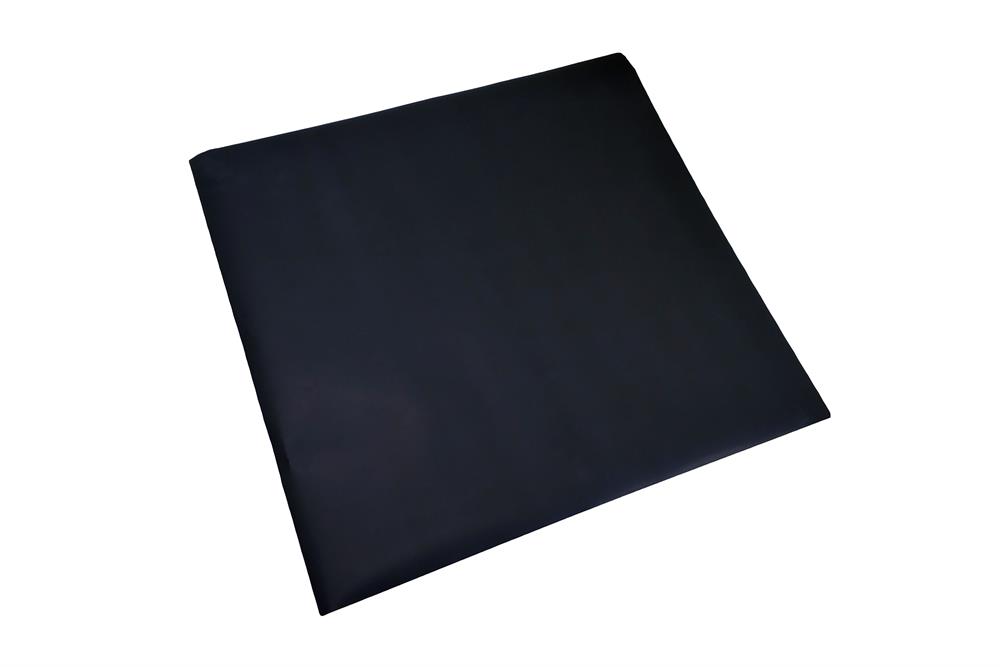

This electrode sheet is based on aluminum foil coated with hard carbon on a single side and is used as a cathode electrode of a Na-Ion battery.
There are 5 sheets in a package bag.
There are 5 sheets in a package bag.
SPECIFICATIONS:
- Total Area: 241 mm L x 200 mm W x 110 um T
- Coating Area: 241 mm L x 175 mm W (Left and Right-hand side 12.5 mm without coating)
- Single side coating
- Coating thickness: 110 um
- Current collector (substrate): Aluminum foil, 16 um thickness
- Coating material: Hard Carbon
- Coating density: 8 mg / cm^2
- Aluminum substrate density: 4.34 mg / cm^2
- Active Material Proportion: 94.8%
- Specific Capacity: 400 mAh/g
- Qty: 5 sheets / bag
- Warning: Please dry in vacuum oven before using and store it inside glovebox after opening the package
SDS for Aluminum Foil. SDS for Hard Carbon- Application Note:
- Please baking at 120oC under a vacuum oven before coating.
- MTI does not manufacture this product. We only provide a small quantity to research to develop a new generation battery,
- MTI is not responsible for any IP issues. If anyone feels the product conflict with your IP, please inform us, we may stop selling at any time.
