  7. Heavy Duty High Speed Abrasive Cut-off Saw with two 10" SiC cutting blades - SYJ-30

Categories

Diamond Blade Saws

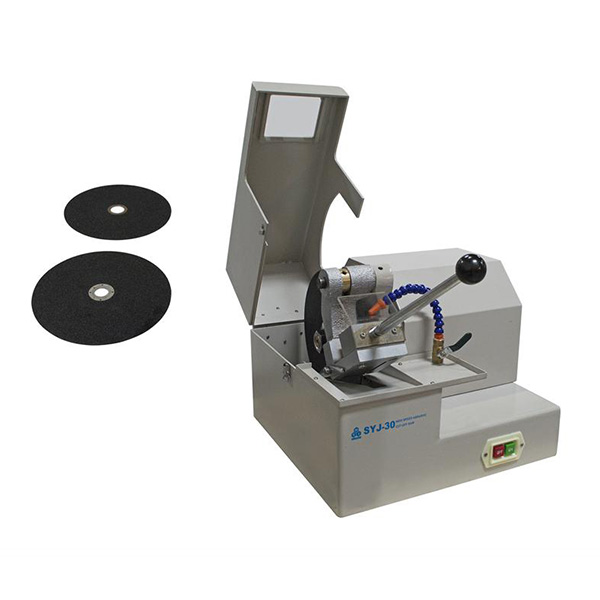

Heavy Duty High Speed Abrasive Cut-off Saw with two 10" SiC cutting blades - SYJ-30

0.0/5 rating (0 votes)

Description

SYJ-30 (originally  EQ-MT-200) is CE certified heavy-duty bench top wet abrasive cut-off saw. It is designed to cut metallographic samples faster and safer at an affordable price. The 10" SiC or diamond cutting blade is used for cutting all kinds of materials with a maximum sample size of 30 mm x 30 mm. A cooling system is built in to avoid sample overheating or splashing water during cutting.

SPECIFICATION:

Input Power 208 - 240V AC single-phase (50/60Hz)
(110V version is available with a 3000W transformer）
Motor Power AC Motor with 1.1 KW
Motor Speed 2800 RPM
Cutting Blade Two 10" OD x 2 mm (Thick) x 1.25" ( Arbor) SiC cutting blade are included. Click the picture below to order spare blades.

Max. Cutting Section 30 mm x 30 mm
Mount Vise The t-clamp vise is included for quick tightening or release
Driving the Cut Manually push up. It is safer and faster than to push down along the cut-off saw.
Cooling system
  • Inlet flow is adjustable in the front panel, and outlet flow is adjustable at the bottom of the machine. Must clean the machine after cutting to avoid corrosion.
  • Better use Heavy Duty Coolant Circulating Tank with Pump, 4L to recirculate the anti-corrosion LubeCool-150 lubricant/coolant  ( Please click underlined or picture below to order at an extra cost )

Machine Dimensions 650 mm x 450 mm x 400 mm
Net Weight 60Kg (132 lbs)
Shipping dimensions 45" x 35" x 30"
Shipping weight 160 lbs
Warranty One Year limited warranty and lifetime support, not including blade and rusted parts due to inadequate storage conditions.
Certification CE certified. MTI can arrange NRTL such as UL/CSA with an additional certification fee.
Instruction & Video


Application Notes
  • How to change the cutting blade
  • How to mount the sample
  • Water inlet & drain pipe
  • Please use an anti-corrosion coolant during cutting to avoid rusting the lead screw. Not suggest using water as a coolant during cutting. You may select our LubeCool-150 lubricant as a coolant, and build up a small circulation system with Heavy Duty Coolant Circulating Tank with Pump, which will make the diamond blade cut more efficiently and keep the machine from corrosion.
  • Also, you can use W10-30 motor oil as a coolant, which is available at any auto store.
  • Always clean the machine, especially the lead screw using W40 lubricant after each use.

STANDARD PACKAGE

S/N

Name

Quantity

Note

1

Main Machine

1

SYJ-30 Cutting Machine

2

Cutting Blade

2

Silicon Carbide

3

Wrench

2

36 mm and 46 mm

4

Dressing Blade

1

EQ-LSS-021
