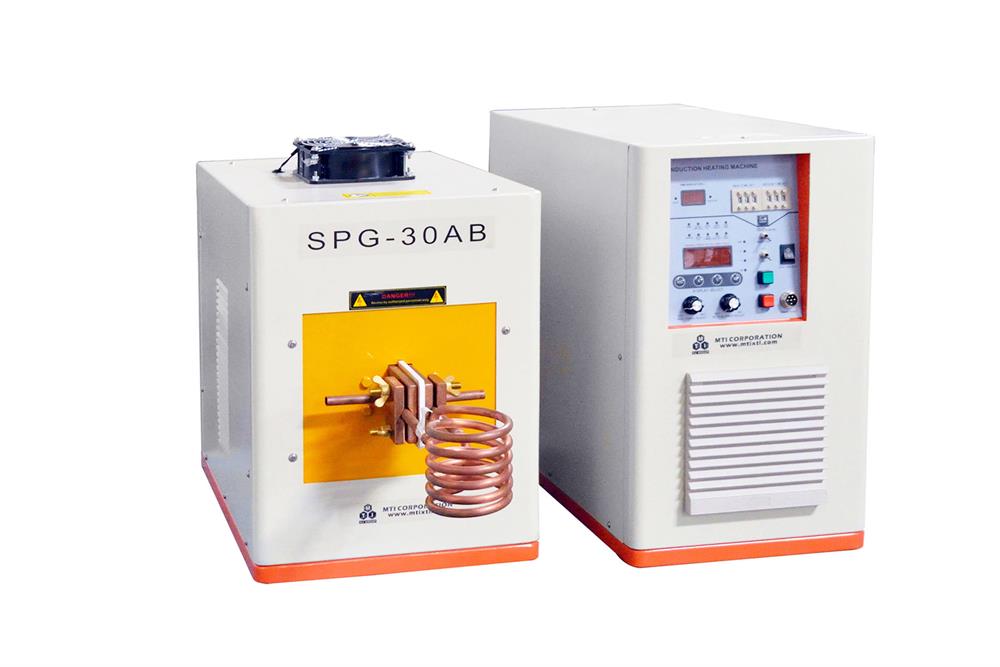

High Frequency Induction Heater, 80-200kHz, 30KW - EQ-SPG-30AB

EQ-SPG-30AB is a compact 30KW High-Frequency Induction Heater is designed for quickly heating or melting metallic material. This system can also be modified to a crucible melting furnace with 2" tube and flange.

SPECIFICATIONS:

Working Voltage	220 +/- 10% VAC, 50/60 Hz, Three Phase (380VAC 50/60 Hz, three-phase is available upon request)
Max. Output Power	30 KW (100A power outlet is required)
Inductive Current	7 - 70 Amp Adjustable with digital display
Output Frequency	80 - 200 kHz, non-adjustable.
Duty Cycle	100%
Timer Control	Automatic timer control or  Manual control selectable Manual Control: by Foot Pedal Automatic Heating Time: 1-99 Seconds Automatic Dwell Time: 1-99 Seconds Automatic Colling Time: 1-99 Seconds
Electric Cable	The cable length between the transformer station and the working station is 2 meters.
Air Cooling	Rear Fan
Water Cooling	Flowrate: > 6 L/Min Pressure: ≥0.2 MPa (29 Psi) Tap water is acceptable, the use of a Recirculating Water Chiller is highly recommended. please review KJ6200 water chiller specs by clicking the picture on the left. Note: Water chiller is not included.
Water protection	Overpressure and over-temperature protection
Induction Coil (Standard Package)	Made by 8mm Dia. Copper tube (One Coil 55mmDia. x 80mmH is included) The customized copper coil is available at extra cost ($300/ea) upon request
Product Dimensions	Working station: 520mm(L) x 260mm(W) x 450mm(H) Transformer station: 450mm(L) x 300mm(W) x 400mm(H)
Warranty	One Year limited warranty with lifetime support
Compliance	NRTL or CSA  Certification (UL61010-1 & UL499) is available upon request at extra cost.
Quartz Tube and Induction Coil  (optional)	This induction heater also can be used as vacuum crucible induction melting furnace if use 2" quartz tube and vacuum flanges (Please click the picture below to see details): Half Open Quartz Tube is included with dimensions of 50mm(OD) x 44mm(ID) x 300mm(L) KF25 connector and 1000mm long SS pipe for connecting to the vacuum pump Stainless Steel Flange with high-temperature silicone o-ring and self-tighten structure Vacuum pump for evacuating the chamber
Operation Video
Application Notes	Applications: please click here to learn the Fundamentals of Induction Heating Melting Sintering Annealing Heat treatment Quenching The heater will shut down if over output occurs. Please reduce sample size to keep the heater operating under Max power Please click here to learn how to setup crucible for melting Melting time and temperature are related to materials, the crucible, refractory insulation, etc. If you do not know whether the induction heater can melt your sample or not, please contact our engineer for consulting. Have your alloy's composition, melting point, and quantity to be melted prepared For customization inquiries, please complete the "Customize Induction Heating System Form" and return it to This email address is being protected from spambots. You need JavaScript enabled to view it.
Net Weight	53 kg
Shipping Weight	80 kg
