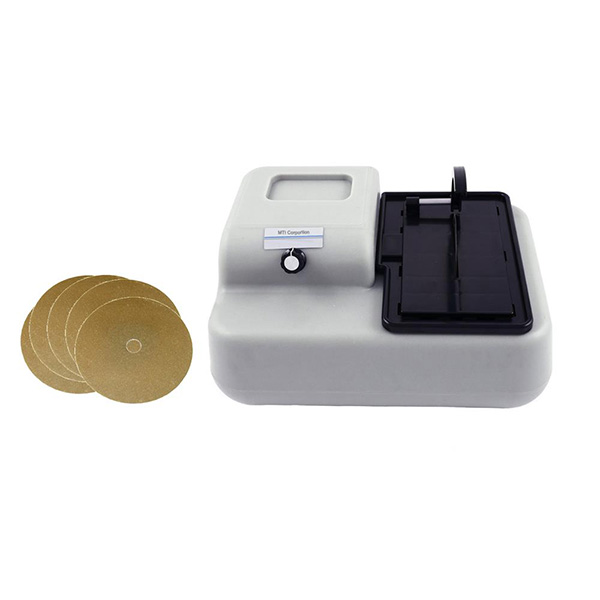

High Speed Diamond Cut-off Saw with 5 pcs 4" Diamond Blades - SYJ-40-LD

SYJ-40 is a 4" Manual Cut-off Saw and is the perfect tool for cutting valuable materials quickly, such as rough crystal, ceramic, metal rod and almost any material before lapping and polishing.
Notice: The vice is no longer included in the standard package since Sept. 2020.

SPECIFICATION:

Power	120W Voltage: 110V AC  50/60hz in order to use at 208-240V, you need a transformer 240V-110V, please click here to order separately.
Motor & Spindle	The 1/4 HP equivalent variable speed ball bearing direct drive motor allows the saw to run fast enough to use ultra-thin diamond blades Speed varies from 400 to 3250 RPM
Housing and Sample holder	The saw housing is flat and removable. It is easy to trim oversized slabs and be cleaned after the operation Max. sample loading length: 6"  The sturdy table measures 6" x 10", easy to operate The saw housing is made of unbreakable cross-linked polyethylene - no rusting, no messy oil, water only Max. cutting depth: 1" (25.4 mm) Max. sample width: 40 mm (limited by the opening of the sample holder)
Cutting Blade	Come with 5 pcs of the impregnated diamond blade of 4" Dia × 0.014" (0.35 mm) thickness x 1/2" arbor To cut soft material, such as plastics, stainless steel, Ni, Ti, Cu, and their alloys, please choose the 4" SiC blade, please click the 2nd picture below at an extra cost For a longer service time of a cutting blade, please order a sintered diamond blade and Lube-150 (please click the 3rd and 4th picture below at an extra cost
Shipping Dimensions	16" x 13" x 11”
Shipping Weight	16 lbs
Warranty	Two Years limited warranty
Application Notes	Please note that this manual diamond saw is mainly for fast cutting. For more precise cutting, please select our precision low-speed diamond cutting saws such as SYJ-150 or SYJ-160
Operation Instruction
