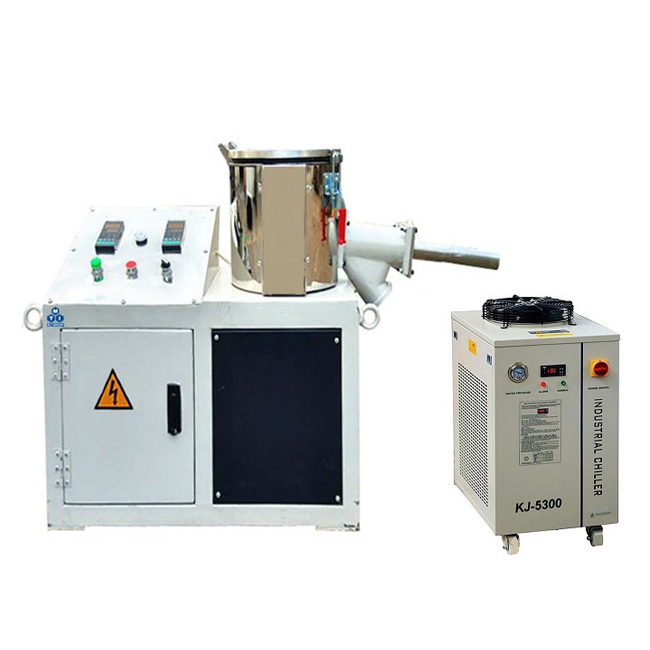

High Speed Vortex Blade Mixer of Dry Powder with 10L Water Cooling Vessel - EQ-RXSHR-10

Name: High Speed Vortex Blade Mixer of Dry Powder with 10L Water Cooling Vessel - EQ-RXSHR-10
Brand: Premier Solutions Pte. Ltd

0.0/5 rating (0 votes)

Description

EQ–RXSHR-10 is a pilot scale high-intensity vertical mixer, which is universal friction mixers for free-flowing raw materials, with and without the addition of liquids. Circumferential speeds of 10 m/s to 40 m/s result in a marked mixing vortex. This allows the broad process diversity that extends from heating and temperature control via reacting, melting and coating to agglomeration and dispersion, also under pressure and vacuum.

SPECIFICATIONS

Power Supply	AC 208V 50/60Hz, Single Phases Total < 5.5 KW 50A air beaker required The power plug is not included. Please click here to order the plug
Mixing Vessel	Materials: inside vessel SS 316 and Outside SS304 Inside Dimension: 240mm ID x 220 mm High Nominal Capacity: 10 Liters Effective Capacity: 7 liters Build-in temperature sensor Water cooling jacket outside of vessel with 360 mm OD Circulating water chiller is included as the link below
Vessel Lid	Lid made of SS304 One glass observation window is installed on the top KF25 port built on the top for connecting to a vacuum pump ( optional ) More Port may be added upon request at the extra cost
Discharge Port	Made of aluminum alloy Manual valve
Mixing blade	Made of casting stainless steel Double layer as picture left One Baffle plate is built in the vessel to make mixing more uniform
Speed	Motor 200 - 2800 RPM adjustable Speed controlled by the constant torque frequency controller Line speed: 15 m/s - 35 m/s Mixing time: 5 - 8 minutes (suggested)
Temperature Monitor	Twi digital temperature monitor built in to monitor both the temperature of the inside vessel and outside
Dimension	1400L x 500W x 900 H, mm
Compliance	NRTL certification is available upon request at extra cost
Warranty	One-year limited warranty with lifetime technical support Rust and damage due to improper storage conditions or lack of maintenance is not covered by warranty
Operation Instructions
Net Weight	200 Kg
