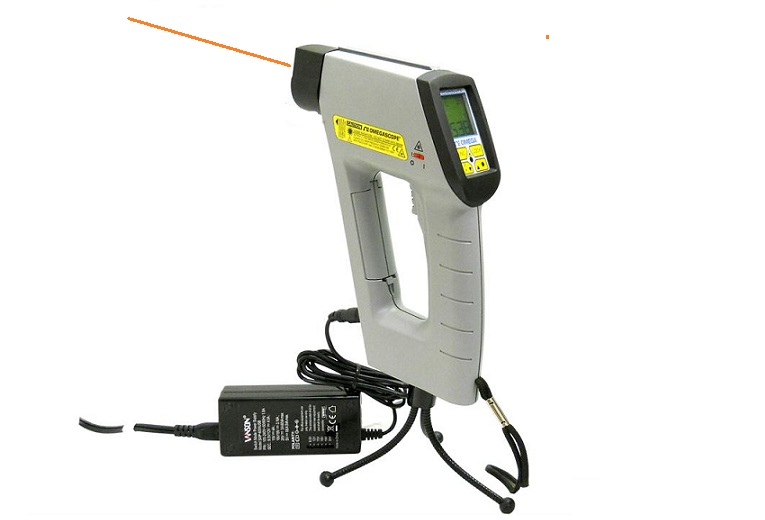

High-Temperature Handheld Infrared Thermometer with Laser pointer (538C - 2482°C) - EQ-OM-OS524E-LD

0.0/5 rating (0 votes)



EQ-OM-OS524E infrared thermometers offer solutions for many non-contact temperature measurement applications. Their emissivity, adjust in 0.01 increments, allows them to measure a variety of surfaces. A custom backlit LCD features dual digital display of the current and max, min, difference, or average temperatures simultaneously. Standard features include high and low audible and visual alarms, 1 mV/degree analog output, RS232 output, and temperature data storage.


  •       Temperature measurement: 538C - 2482°C
  •       Measurable target distances from 5 inches to approximately 100 feet.
  •       Emissivity adjustable from 0.1 to 1.00 in 0.01 steps provides ease of use when measuring a variety of surfaces.
  •       Built-in Laser sighting in Circle & Dot configurations.
  •       Thermocouple input available.
  •       An electronic trigger lock feature set via the keypad allows continuous temperature measurement up to 10 times per second.
  •       Audible and visual alarms. The high and low alarm points are set via the keypad.
  •       0.5 mV per degree (°F or °C) analog output, which allows interfacing with data acquisition equipment (including chart recorders, dataloggers and computers).
  •       Last temperature recall (Hold).
  •       Backlit display useful in low ambient light conditions.
  •       Powers from 4 AA size batteries or an AC ( 110-240V) to DC 9.5V adapter (Included).
  •       One mini flexible tripod stand is included
  •       RS232 serial communication to a PC or printer. This allows downloading data for further analysis.
  •       Ambient target temperature compensation. This provides more accuracy for measuring low emissivity targets.
  •       Record up to 800 temperature data points. Review the recorded data on the thermometer LCD, as well as downloading the data to a PC.
  •       Made in USA and two years warranty.



  •     Accuracy:                                 +/- 1% rdg or 2°C (3.6°F),  whichever is greater
  •     Repeatability:                           +/-  (1% rdg + 1 digit)
  •     Resolution:                               1°C or 1°F
  •     Response Time:                       100 ms
  •     Spectral Response:                  2 to 2.5 microns
  •     Emissivity:                                0.10 to 1.00 in 0.01 increments
  •     Operating Temperature:             0 to 50°C (32 to 122°F)
  •     Power:                                      4 “AA” lithium batteries (2 sets included) or AC adaptor
  •     Battery Life:                               14 days, lithium;  80 hours, alkaline
  •     Tripod Mount:                           1⁄4 to 20 UNC
  •     Display:                                     Backlit LCD;  displays current and min  or max, differential, average temperatures simultaneously
  •     Alarm:                                       High and low alarm standard,  with audible and visual indication
  •     RS232:                                     2-way communications

       Operation Manual         Operating Software
