Features

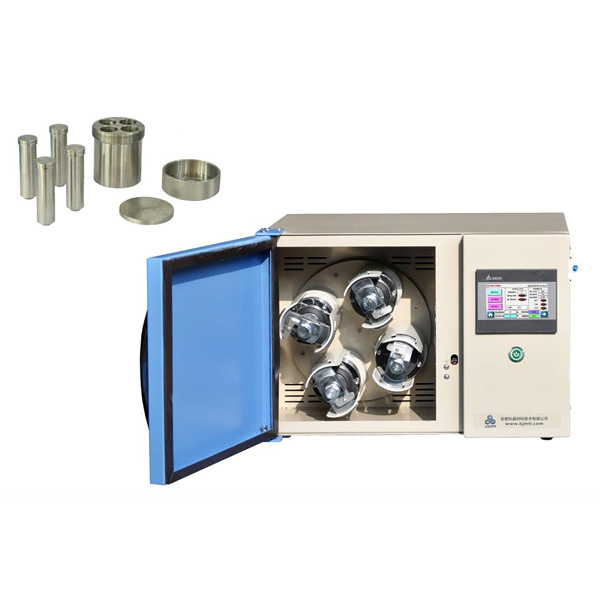

    | - High throughput processing is feasible thanks to the 4-cavity SS jar. Up to 16 different materials can be processed at the same time with 4 jars placed in position. Please click the bottom left image to see the details.
- Bench-top compact design with 4 Grinding Stations.
- Large touch screen controller allows easy programming for multi-step speed-up/down milling/grinding, rotate direction, timing control, and cycling
- Efficient grinding benefits from the high centrifugal force and pulverization energy
- Suitable for mechanical alloying, mixing, homogenizing, pulverizing
- Minimum output granularity can be as small as 0.1 um
|
| Working Voltage | |
| Speed | - Speed adjustable by tuning the frequency output to the AC motor
- Revolution: 324 RPM
- Mixing tank self-rotation: 648 RPM
|
| Speed Ratio | Revolution:Self-rotation = 1:2 |
Touch Screen Control
 | - Digital display and inputs for speed and time
- Up to 10 recipes can be stored
- Max. 5 segments speed control per recipe, up to 10 Cycles
- Max. time for each segment is 99 hours 59 minutes 59 seconds
- Rotation direction selectable, clockwise-anticlockwise
|
| Material Feed Size | Crispy materials< 10mm (Others<3mm) |
| Material Output Size | - Wet Milling < 1um average
- Dry milling < 20um average
Note: The output granularity is dependent on the material physical properties such as size, milling media and processing time. Minimum granularity can be as small as 0.1 um according to the customer's feedback. |
Milling Jars
 | - Four sets of 4 cavity SS jars (10ml/cavity) are included, which can mill 16 samples per batch. （Pic 1）
- Four sets of SS milling ball combo are included. Please click the pic in below to order spare balls. （Pic. 2）
- Four jar holders can accommodate the single cavity jars, such as SS jar (Pic 4), vacuum jar. (pic. 5), Alumina Jar (Pic.6)， Tungsten jars （Pic. 3)
- We provide a wide range of jar/ball materials for contamination-free processes, such as Nylon, Alumina, Zirconia, agate...Please contact us for more details.
|
| Noise Level | 55~70 decibel |
Holding Fixtures
 | - Four sets of holding fixtures are included
- Easy to tight for max. jar securing. Can hold jars with height up to 80mm
|
| Warranty | - One-year limited warranty with lifetime support
- Consumable parts, such as milling jar and grinding balls are not covered by the warranty
|
| Compliance | - CE Certified
- NRTL certification is available at extra cost
|
| Production Dimensions & Weight | - 500mm(L) x 350mm(W) x 330mm(H)
- 60KG
  ( May put in the vacuum glovebox ) |
| Operation Video |
Operation Video High Throughput Process Holding Fixture Video |
Application Notes
 | - SS304 mixing jar is suitable for grinding various metal materials
- For milling the oxide material, please choose alumina/Nylon jars and zirconia media. DO NOT USE stainless steel balls in Alumina jars.
- Must place 4 jars or 2 in symmetrical with similar weight in the ball mill to keep balance during rotation, If using one jar, you must put another jar with the same weight in a symmetrical position. Otherwise, unbalance rotation, especially one jar, may damage the machine.
- Please consider our SYU-3 Ultrasonic Filtration System for filtering the product
- Please click underline to learn Centrifugal Force calculation.
|
| Shipping Dimensions | 30"(L) x 28"(W) x 26"(H) |
| Shipping Weight | 200 lbs |
