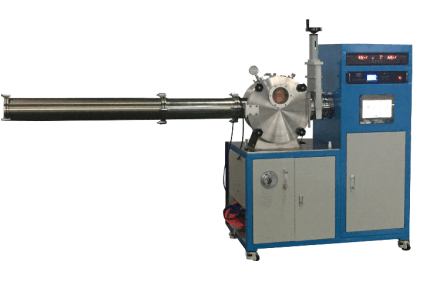

High Vacuum Melt Wire Spinning System - VTC-W100

VTC-W100 is a lab-scale high vacuum wire melt spinning system to prepare amorphous metallic wire < 20-micron diameter via induction heating and rapid quenching on a specially designed spinning copper drum. SPECIFICATIONS:

Features	The system consists of the vacuum chamber with turbopump, induction heating with vacuum casting device, and spinning wheel with max. 70 meter /sec. spinning speed Can melt metallic sample around 10 - 100 g per batch.up to 2000oC
Power Requirements	Input Voltage: 208 - 240V AC, Three Phases Input Power: 20 KW ( 70A breaker required)
Vacuum Chamber         & Vacuum pump	Vacuum chamber: 400 mm  diameter  x 350 mm L Hinged type door with quartz glass observation window Built-in a mechanical pump and turbopump Can achieve 5 x10 E-5 torrs within 30 minutes Limited. vacuum level 10E-7 torr (with baking)
Induction Heater	Dual Station 35KW Induction Heater  Crucible: Ф15×50mm Max. sample load: around 10 - 50g ( Fe)
Spinning wheel	Flying wheel made of  Oxygen Free Copper with dimension φ220×30mm 0 - 70 meter / second adjustable
Wire ( silk)  diameter	Wire (silk) diameter is dependable on material For Fe base alloy  usually can achieve < 100-micron diameter    FeSiBNbCu alloy amorphous wire in about 50-micron diameter
Optional Facility	Water chiller > 58 L/min
Footprint	Mian Unit:    2600X900mm  Control Unit: 700X700mm
Compliance	CE Certified NRTL certification is  available upon request at extra cost
Warranty	One year limited warranty with lifetime support
