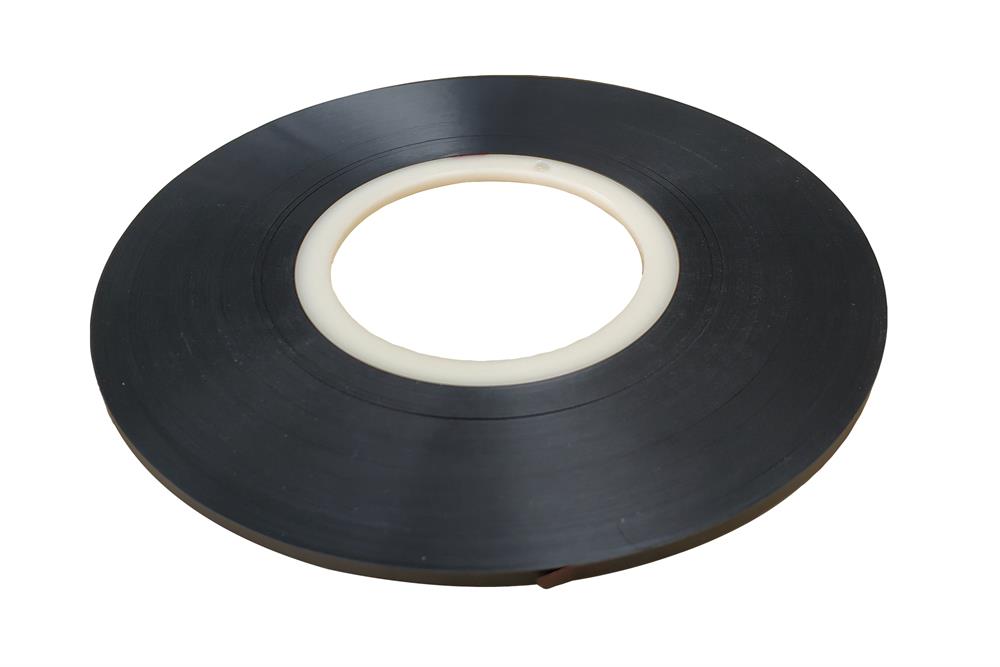

This hot melt adhesive/sealant is a must-have item specifically made for sealing tabs (Nickel or Aluminum) in between aluminum-made lamination film (pouch cell case).
*MTI sells tabs (4mm, 5mm, 8mm, and 30mm) with this sealant and Aluminum lamination film for immediate use, please kindly order from here.
Specifications
Item | Description |
Color | Black |
Thickness | 100 um |
Width | 4mm |
Length | 200m for 1 roll |
Material | Enhanced Sulfurized Polymer Resin Material (3 Layers Lamination) |
Outside Layers (Both Sides) Thermal Softening Index | 116ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
Outside Layers (Both Sides) Thermal Melting Index | 135ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
Middle Layers (Both Sides) Thermal Softening Index | 145ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
Middle Layers (Both Sides) Thermal Melting Index | 175ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
Removal Strength from Tab | > 15N/15mm |
Removal Strength from Al Lamination Film (Cell Case) | > 35N/15mm |
Resistance to LiPF6 Solution (1:1:1) | No Change in the Solution @ 85ºC*24 Hours |
Packing | Sealed in vacuumed Al bag when shipping |
Manual & Video | Click the video below to see how to use MTI's heat sealer MSK-140 to seal the tab onto pouch cell cases with this adhesive (in the video, we call it polymer tape): |
