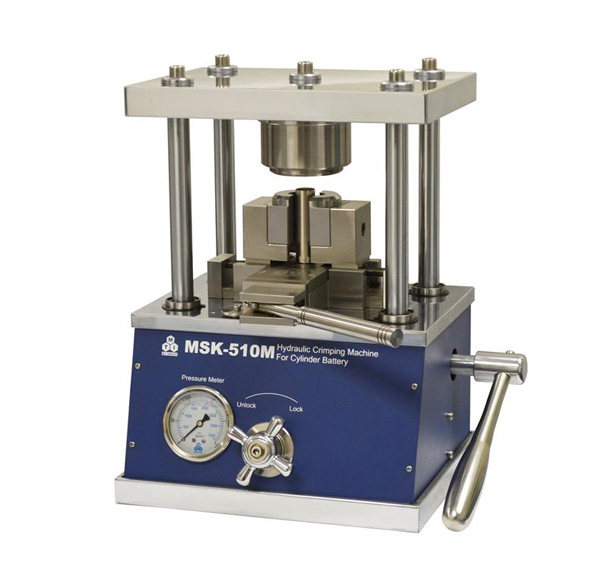

Hydraulic Crimping Machine for Cylindrical Cases (Optional: 32650, 26650, 21700, 18650, etc) - MSK-510M series

MSK-510M is a compact hydraulic crimper for sealing all types of cylinder cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials  during cell assembly. Simple operation with a safety protection feature allows customers to master the sealing procedure within 5 minutes.

MSK-510M is updated with two-step precision crimping dies for 18650/21700 batteries since Oct. 1, 2021. The second step ensures a high-quality wrinkle-free seal on a properly grooved case.

SPECIFICATIONS:

Driving Force	Manual hydraulic pressing up to 5T
Pressure Gauge	0-3500 psi (0-250 kg/cm^2)
Body	Stainless Steel
Crimping Dies	Six standard die selectable: CR123 /18650 / 21700/ 26650 / 32650 / AA /AAA     (please choose from Die Set Option above )
Compliance	CE certified Patent 201120464653.7
Warranty	One year limited with lifetime support  Parts rusted without regular cleaning and maintenance are not covered
Product Dimensions	330mm(L) x 240mm(W) x 400mm(H)
Operation Video Video: How to Make 18650 Cylindrical Cell
Application Notes Click here to order the spare cylindrical case You need a Cylinder  Grooving Machine  to crimper the cylindrical cell	Customized die for other cylindrical cell types is available upon request It is necessary to groove the opening end of the cylindrical case by using the MSK-500 grooving machine before sealing the cap Each type of cylinder cell can only be sealed specifically by a certain model of this equipment. Please select the type of cylinder cell in the Product Options dropbox to check the model number and price for the corresponding crimping die of each cylinder cell type Please check the chart below to order the cylindrical cases. P/N Description (click to view details)  Case Dimensions EQ-Lib-CR123 100 pcs CR123 cylindrical case EQ-Lib-18650 100 pcs 18650 cylindrical case EQ-Lib-21700 250 pcs 21700 cell case EQ-Lib-26650 100 pcs 26650 cylindrical case EQ-Lib-32650 60 pcs 32650 cylindrical case EQ-Lib-AA 100 pcs AA cylindrical case EQ-Lib-AAA 100 pcs AAA cylindrical case
Net Weight	26 kg (58 lbs)
Shipping Weight & Dimension	130 lbs, 40"x30"x25"
Warning	Please don't use the hydraulic crimper inside the glove box to avoid oil-leaking.  If you have to use it inside the glovebox, please choose compressed driven crimper  The compressed gas-driven crimper is available upon request
