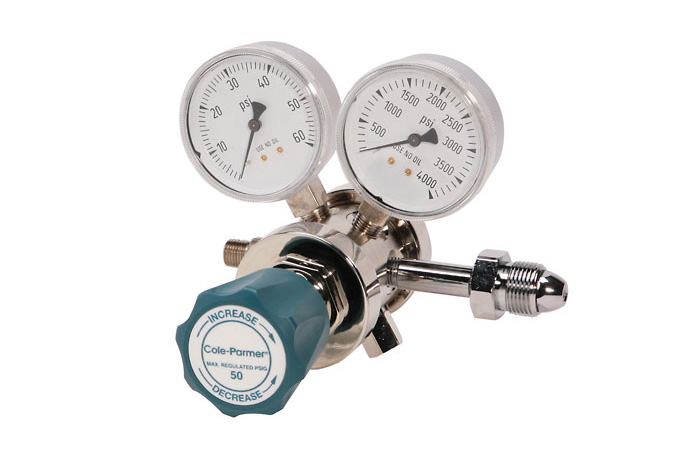

Inert Gas Regulator , Two Stage Brass 0-100 psi Analytical Cylinder Regulator - CGA-580-LD

0.0/5 rating (0 votes)

Description

Important Note
For any application involving processing gas in the furnace, to ensure the safe use of furnace flange, please always install the two stage gas regulator to the cylinder. Read the furnace instruction to understand the pressure rating of each part in the system. Determine and limit the input gas pressure before the operation to avoid overpressure which could cause damages to pressure gauge, needle valve or other fittings. Failure to install gas regulator could cause severe personal injury.
E.g. The max pressure for MTI mechanical gauge (pic below) in the flange is 0.15Mpa (22psi). It may cause pressure gauge broken when higher pressure is applied. Use the gas regulator to limit the input pressure to avoid overpressure.

Installation

1. Connect the gas regulator to the gas Cylinder.  Install a 1/4" tube fitting to the outlet of the gas regulator. 2. Install another 1/4 tube fittings in the flange.
Use a 1/4 stainless steel or PTFE tube (low pressure) to connect the gas regulator and flange.
NOTE: Make sure the thread type of the 1/4 tube fittings before installation. For most gas regulator in U.S., the 1/4 tube fitting is required to have 1/4 MNPT thread type.   For MTI flange system, the 1/4 tube fitting is required to have 1/4 MBSPP thread type
3. Finish Installation.


Specifications of CGA-580 gas regulator

Maximum Rated Inlet Pressure  3,500 PSIG
Outlet Pressure Ranges  0-25, 0-50, 0-100, 0-250 PSIG
Flow Capacity - Cv 0.058
Ambient Operating Temperature -40°F to +165°F
Designed Leak Rate Bubble-Tight (helium)
Weight 4.4 lbs
Ports (4) 1/4" FNPT
Inlet  1/4" FNPT
Outlet  1/4" MNPT
Decay Inlet Characteristic  0.26/100 psi
Cylinder CGA 580
Material Brass
Inlet Gauge 0-4000
Flow Capacity (SCFH) 900
Max Inlet Pressure (PSIG) 3500
None Flammable Gas Type Argon,Helium,Nitrogen
For Hydrogen, please order CGA-350-LD
Max Outlet Pressure (PSIG) 100
