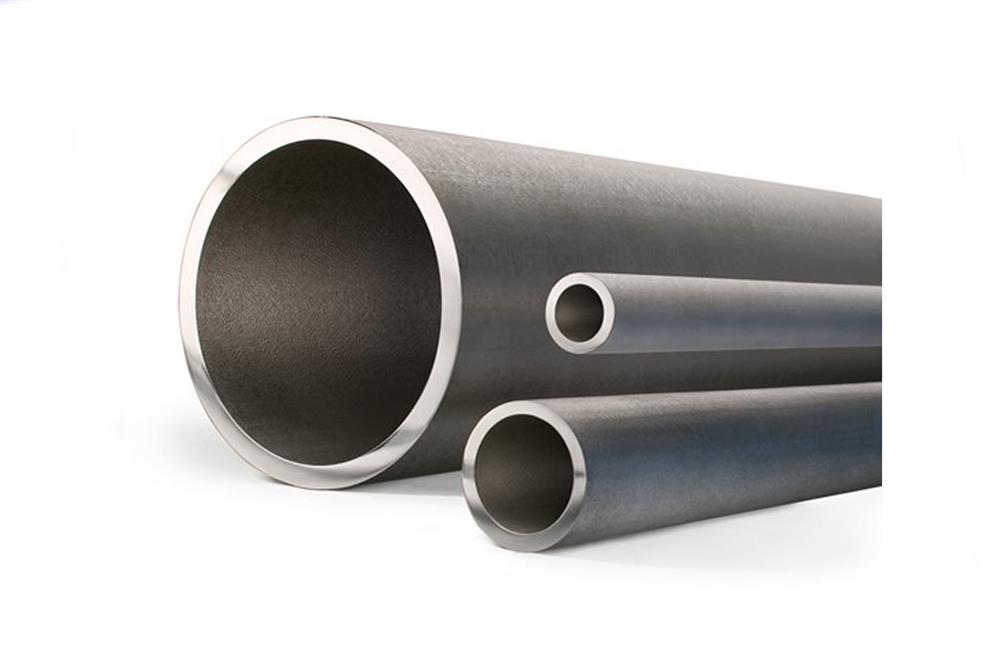

Kanthal APM FeCrAl Alloy Tube: 100 OD x 90 ID x 1200 L mm, 1250C Max. Working Temperature - Tube-APM-100-5-12-LD

0.0/5 rating (0 votes)

Description

Kanthal APM is an advanced powder metallurgical, dispersion strengthened, ferritic iron-chromium-aluminium alloy (FeCrAl alloy) for use at tube temperatures up to 1250°C (2280°F). Advance Features:

  • Good form stability at high temperature
  • Non-scaling surface oxide gives good protection in oxidizing, sulphurous and carburizing furnace environment, as well as against deposits of carbon, ash, etc
Composition 20.5~23.5% Cr; 5.8% Al; Bal. % Fe; %0.4 Mn; %0.7 Si; %0.08 C
Mechanical Properties
  • Yield Strength (Rp0.2): 450 Mpa
  • Tensile Strength (Rm): 670 Mpa
  • Elongation (A): 27%
  • Hardness (Hv): 225
Mechanical Properties at elevated temperature Creep Strength
  • 5.9Mpa @ 900°C
  • 2.0Mpa @ 1000°C
  • 0.7Mpa @ 1100°C
  • 0.3Mpa @ 1200°C
Physical Properties
  • Density g/cm^3: 7.1
  • Electrical resistivity at 20°C Ω mm2/m: 1.45
  • Poisson's ratio: 0.3
Temperature  1250 °C max. in the air
Melting point 1500 °C
Dimensions 100ODx90IDx1200L mm
Application Notes
  • For longer tube service life, please use alumina, BN or zirconia crucibles to carry samples instead of put loading directly onto the tube. Please click pic.1 in below to choose crucibles.
  • You may need a water cold flange with proper support for the alloy tube due to high thermal conductivity. Please click pic.2 in below to order.
  • You may use the alloy tube with our three-zone tube furnaces for materials sintering, annealing applications, please click pic.3 for more details
  • Datasheet, please click the underline to see detailed specs.
        Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )Pic.1         Pic.2     Pic.3
Warranty Please note that this is a consumable item with no warranty coverage.
