KF Flanged Quartz Viewports

Lesker - KF Flanged Quartz Viewports

KF Flanged Optical Glass Viewports Features:

• Built from the highest-quality materials to UHV standards
• Compatible with vacuum systems capable of reaching High Vacuum levels

UV Quartz Features:

• Leak Rate <2x10^-10 atm cc/sec He
• Parallelism <30 Arc Minutes
• 304L Stainless Steel Flange
• Temperature Range -100°C to 200°C
• Surface Finish 40/20
• Corning HPFS 7980 Fused Silica
• Homogeneity Grade F
• Inclusion Class 2
• Transmission >90% @ 250nm (external)

DUV Quartz Features:

• Leak Rate <2x10^-10 atm cc/sec He
• Parallelism <10 Arc Seconds
• 304L Stainless Steel Flange
• λ/4 @ 632nm Transmitted Wavefront
• Temperature Range -100°C to 200°C
• Surface Finish 20/10
• Corning HPFS 7980 Fused Silica
• Homogeneity Grade A
• Inclusion Class 0
• Transmission ≥99.8% @ 248nm (internal)

OTE: ** O-ring seals normally cannot handle temperatures as high as the viewport itself **

CAUTION: For safety, Kurt J. Lesker / Premier Solutions strongly recommend that no viewport is exposed to a temperature ramp of greater than 2-3°C per minute, and that no viewport be exposed to direct thermal radiation. To limit thermal gradients when heating viewports, we recommend the viewing area and the flange be covered with many layers of aluminum foil to act as a reflective shield.

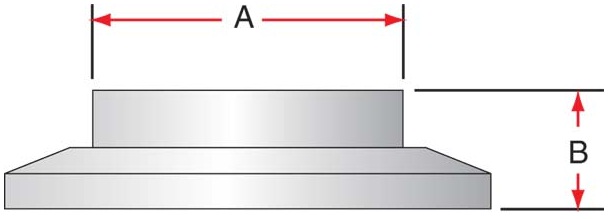

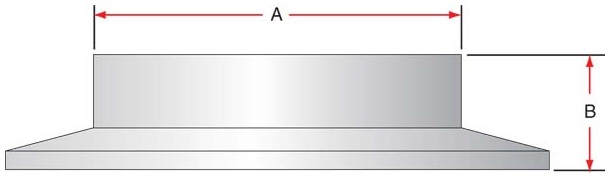

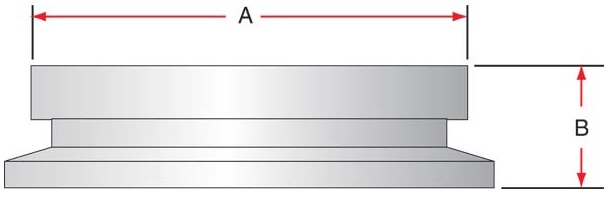

Dimensional Drawings

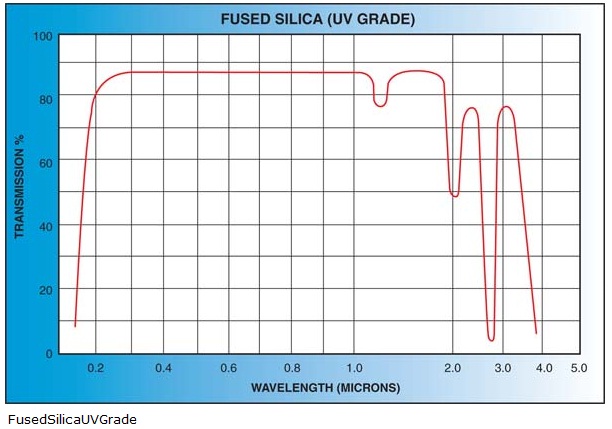

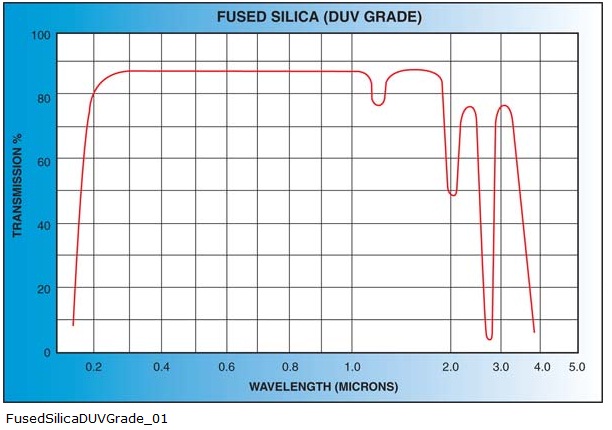

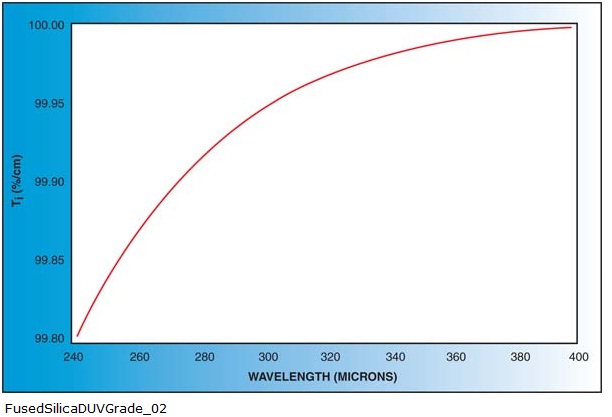

Charts
