KJLC 615TC Series Thermocouple Gauge Controller

Lesker KJLC 615TC Series Thermocouple Gauge Controller

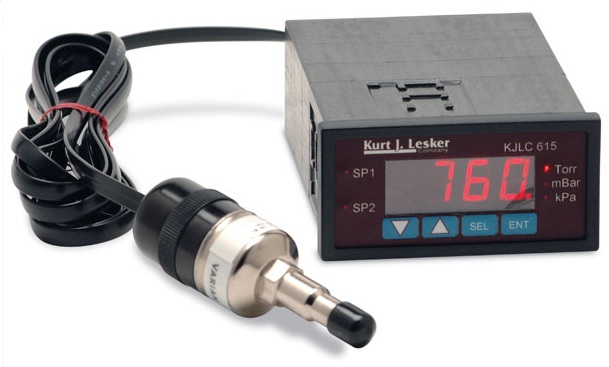

The Kurt J. Lesker KJL615TC is a complete vacuum instrument pre-tested under real vacuum against a NIST standard

Each Lesker 615 gauge includes:

• a vacuum gauge controller
• a thermocouple gauge tube, tested and calibrated with controller
• 10 foot controller to gauge tube cable
• 5 foot AC power supply

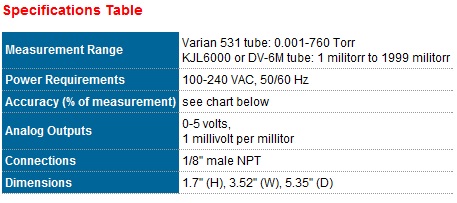

Features

• Wide range measurement of 0.001-760 Torr (if using a Varian 531 gauge tube)
• Range of 1 millitorr to 1999 millitorr (if using a KJL6000 or DV-6M gauge tube)
• Selectable units. Torr, mBar or kPa
• 1/8 DIN or bench top mounting. Mount brackets and rubber feet included
• 100-240 VAC, 50/60 Hz power
• Display – 0.56" high red LED
• 2 set point controls
• Analog output
• RS232 data port

Lesker KJLC 615TC Series Thermocouple Gauge Controller
