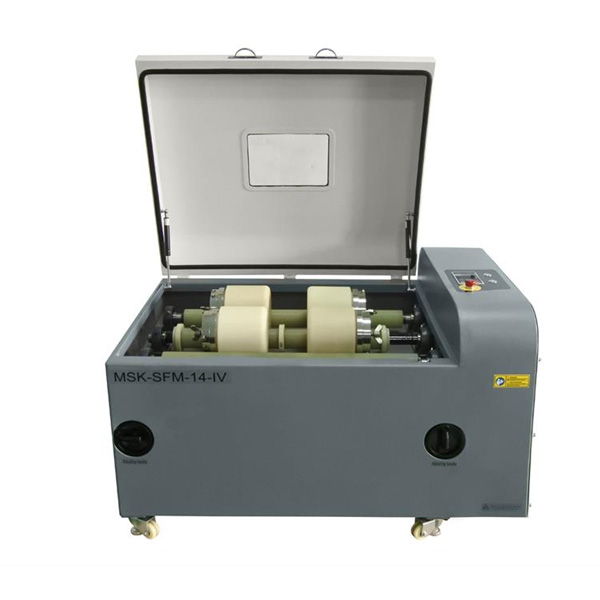

Large Lab Roller Mill with Variable Speed & Four Optional Tanks - MSK-SFM-14-IV

0.0/5 rating (0 votes)

Description

This Large lab roller mill MSK-SFM-14-IV is capable of crushing, grinding, dispersing metallic, non-metallic and organic material powders. Powders can be quickly ground, sheared, pressed and impacted down to a smaller size by extremely high centrifugal forces of planetary balls. The compact body permits the use in a limited space in a laboratory. The simple control interface allows the user to customize the milling process by changing the milling speed and milling orientation easily. The milling process becomes more flexible if using the multiple segments milling function. Four optional tanks could be made of stainless steel, Corundum, Polyurethane (PU), Nylon. The tank could also be a stainless steel vacuum jar.

SPECIFICATIONS

Power Requirements
  • Input voltage: AC 208 - 240 V, 50/60 Hz, single phase
  • Input power: 750 W
  • You may order 1,000 W transformer to use at AC 110 V
Features
  • A solid steel frame with safety covers and observe window
  • Four optional milling tanks
  • The tank volume from 0.5 L to 5 L /each
  • The distance between rollers is adjustable
  •
Milling Model
  • Manual mode
  • Automatic mode
  • Time control: 0 - 99 hours adjustable
  • One/alternate orientation grinding
Milling Speed
  • 0 ~ 269 rpm.
Rollers & Tank (Jar) size

  • The space of two rollers and driving wheels distances are adjustable
  • The roller can hold the milling tank with 50 - 215 mm in length and 70 - 260 mm in diameter
  • With the cover open and safety lock sensor deactivated, the roller can hold milling tank up 300 mm diameter.
  • Different material tanks shown in the pictures below are available in the options bar
  • Vacuum or pressure jar is available upon request
  •
  • Stainless Steel    Corundum        Polyurethane      Nylon                 SS Vacuum
Milling Balls
  • One group of stainless-steel milling balls (not included) with sizes from 6 to 20 mm in diameter
  • Please click the link below to choose various milling balls at an extra cost
  •
Material Final Fineness
  • 10 ~ 70 um (200~1000 mesh)
Material Feed Size
  • < 5 mm (depended on feed material size)
Warranty
  • Two years limited warranty with lifetime technical support
Compliance
  • CE Certified
  • NRTL certification is available upon request at an extra cost
Product Dimensions
  • Closed Lip: L 1,080 mm x W 750 mm x H 620 mm
  • Open Lip: L 1,080 mm x W 750 mm x H 1,250 mm
  • Tank: L 200 mm x Diameter 150 mm
  •
Net Weight
  • 50 kg
Operation Video
  •
Shipment Dimension
  • 47" x 39" x 41"
Shipment Weight
  • 455 lbs
